Methyl Ethyl Ketone

CAS 78-93-3  ·  C4H8O  ·  MW 72.11 g/mol

Full record: Methyl Ethyl Ketone — Safety Data Sheet →

Loading molecule...
3D model Methyl Ethyl Ketone, CAS 78-93-3, molecular formula C4H8O, molar mass 72.11 g/mol

Model views

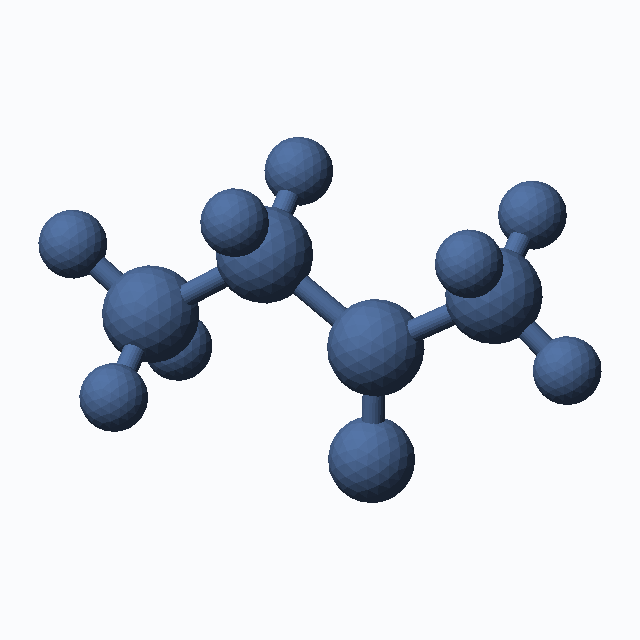

  • Methyl Ethyl Ketone (CAS 78-93-3) – ball-and-stick 3D model, MolGod Viewer
    ball-and-stick 3D model
  • Methyl Ethyl Ketone (CAS 78-93-3) – skeletal 3D model, MolGod Viewer
    skeletal 3D model
  • space-filling 3D model – rotation animation
  • Methyl Ethyl Ketone (CAS 78-93-3) – 2D structure, MolGod Viewer
    2D structure

© 2026 MolGod.org. All rights reserved. · Image rights

🖨️ 3D print model & licenseMolGod_Print3D_1

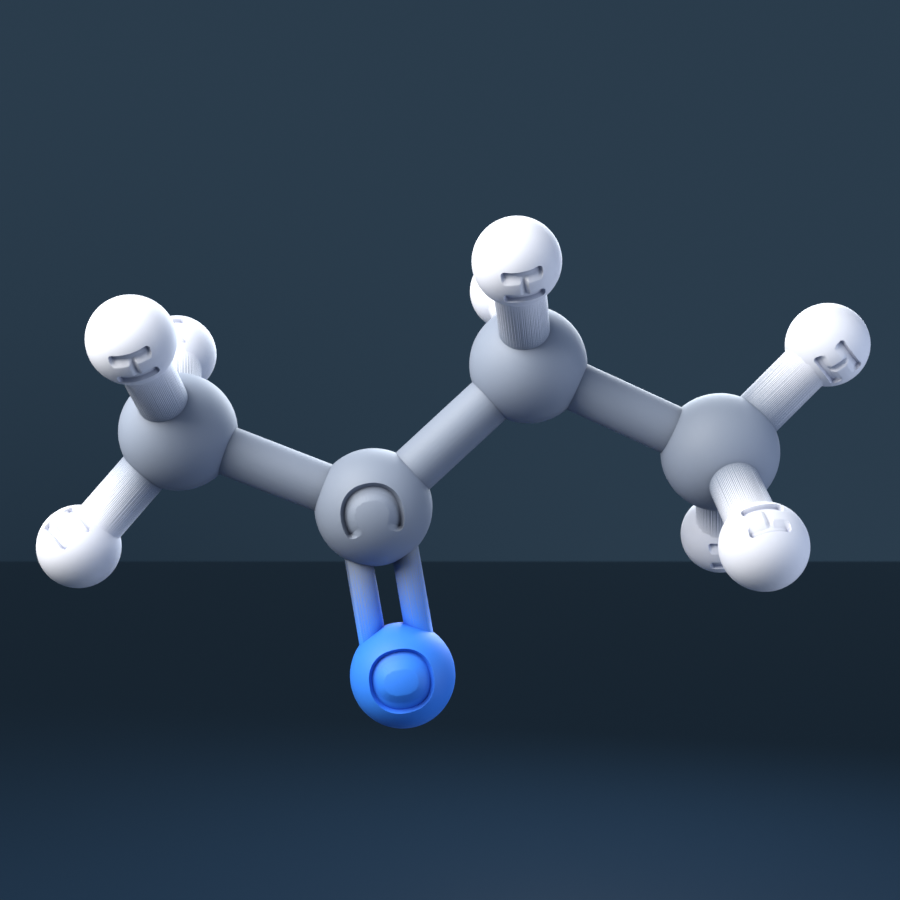

Methyl Ethyl Ketone, C4H8O, CAS 78-93-3 - 3D molecular model
© MolGod.org — All rights reserved · image rights

MG_903-908-242-97 · engraved · 208,852 △ · 10 MB · SHA-256 42d5f853df2fcc97

Download 3D model: Methyl Ethyl Ketone, C4H8O, CAS 78-93-3 · ENGRAVED (C, H, O) · 10 MB

Methyl Ethyl Ketone (CAS 78-93-3), C4H8O - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG_903-908-242-97 · normal · 5,408 △ · 264 KB · SHA-256 d636cf13f578b639

Download 3D model: Methyl Ethyl Ketone, C4H8O, CAS 78-93-3 · NORMAL · 264 KB

License & provenance ↓

⚠️ The MolGod.org name and logo, including the raised logo on the base, are our trademark. The CC BY-SA 4.0 licence does not cover trademarks (section 2(b)(2)). Do not use the MolGod.org logo to brand your own products, in advertising, or in any way that suggests our endorsement without our written permission.

About Methyl Ethyl Ketone

Methyl Ethyl Ketone is a chemical compound registered under number CAS 78-93-3, with the molecular formula C4H8O, and a molar mass of 72.11 g/mol.

The molecule contains 13 atoms connected by 12 chemical bonds. The full systematic IUPAC name of this compound is butan-2-one. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, the partition coefficient logP = 0.3 (positive value, a lipophilic compound), polar surface area PSA = 17.1 Ų, 0 donors and 1 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The interactive 3D model and the viewer images are protected by copyright (© MolGod.org) — terms of use: molgod.org/copyright/.

Physicochemical properties
Molecular formulaC4H8O
Molar mass72.11 g/mol
IUPACbutan-2-one
SMILESCCC(=O)C
InChIKeyZWEHNKRNPOVVGH-UHFFFAOYSA-N
logP (XLogP3)0.3
PSA17.1 Ų
HBD / HBA0 / 1
PubChem CIDCID 6569 ↗
GHS safety

Signal word: Danger

GHS02
GHS02
GHS07
GHS07

H225 — Highly flammable liquid and vapour

H336 — May cause drowsiness or dizziness

H319 — Causes serious eye irritation

EUH066 — Repeated exposure may cause skin dryness or cracking.

Scientific literature

Related literature

5 articles · 1 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (number of articles: 5)

1986: number of articles 119861988: number of articles 12018: number of articles 120182019: number of articles 12022: number of articles 12022

Bar height = number of articles in a given year. Hover over a bar to see details.

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
2-Butanone · METHYL ETHYL KETONE · Butan-2-one · Butanone · 78-93-3 · Ethyl methyl ketone · Methylethyl ketone · Meetco · Methyl acetone · Methylethylketone · 3-Butanone · Ethylmethylketon · Aethylmethylketon · Butanone 2 · Acetone, methyl-
Data sources
Related molecules
📜 License & provenanceMolGod_License_1
COMPUTED — PubChem3D · 3D conformer computed by PubChem using OMEGA; not an experimental structure.
Model
Methyl Ethyl Ketone · 78-93-3
InChIKey
ZWEHNKRNPOVVGH-UHFFFAOYSA-N
License
CC BY-SA 4.0 International
Attribution
MolGod Scientific — Methyl Ethyl Ketone (CAS 78-93-3)
License & provenance record
Methyl Ethyl Ketone (CAS 78-93-3) →
MolGod molecule record
Methyl Ethyl Ketone →
Source data
PubChem CID 6569 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 48804cd20b0d · generated 2026-10-14
SHA-256 (STL)
d636cf13f578b639cd76efeaa0afb0638d09cc604907ecc001b715fb19c3c574
MD5 (STL)
78b5178be0fb500ae67bb44dc6b1bd3c
MolGod Identification Number
MG_903-908-242-97
Transformation
MolGod Scientific ball-and-stick mesh
Changes
Converted into a triangulated molecular mesh; atomic coordinates and connectivity unchanged.
Wikimedia Commons
not published yet
Free printable molecule model
Download the model, print it and use it in education. When you publish a photo, a material or an adaptation, the CC BY-SA 4.0 International licence requires you to credit “MolGod Scientific” as the author of the model, link to the original and to the licence text, indicate any changes you made and share adaptations under the same licence. A ready-to-use attribution text is in this section. No sign-up, no fees and no obligation to leave a review.

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
