Sodium Hypochlorite

CAS 7681-52-9  ·  NaClO  ·  MW 74.44 g/mol

Loading molecule...
3D model Sodium Hypochlorite, CAS 7681-52-9, molecular formula NaClO, molar mass 74.44 g/mol

Model views

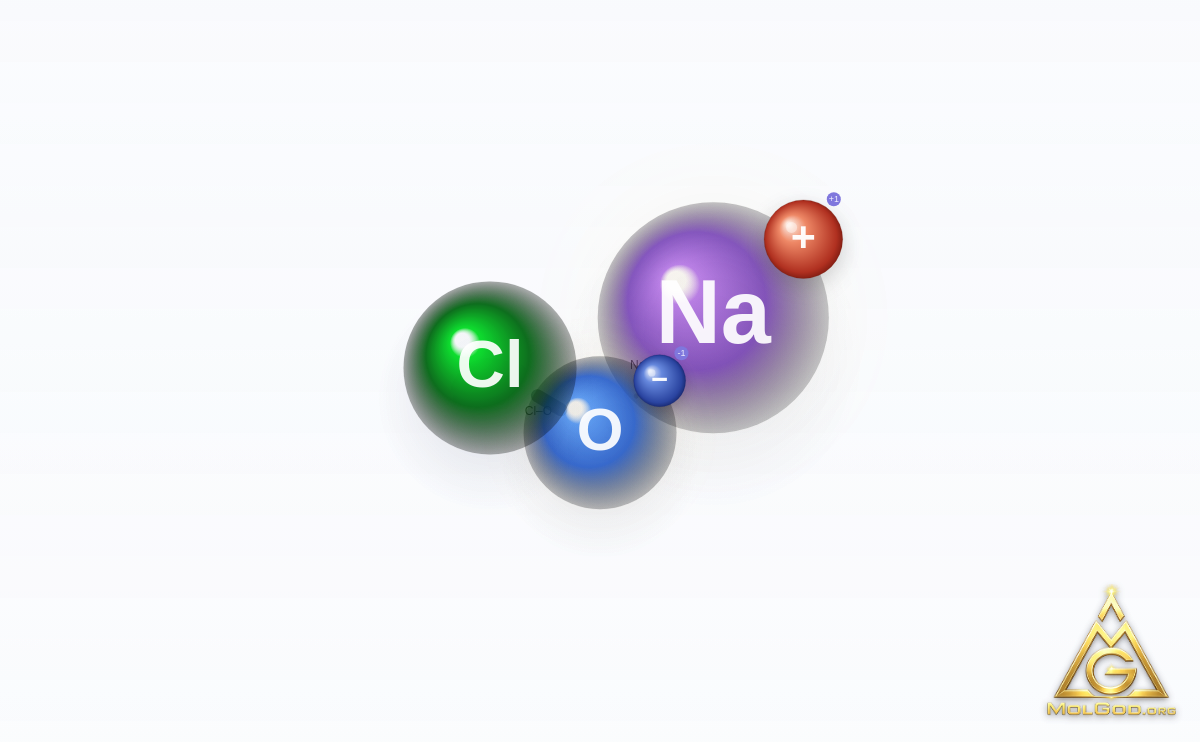

  • Sodium Hypochlorite (CAS 7681-52-9) – ball-and-stick 3D model, MolGod Viewer
    ball-and-stick 3D model

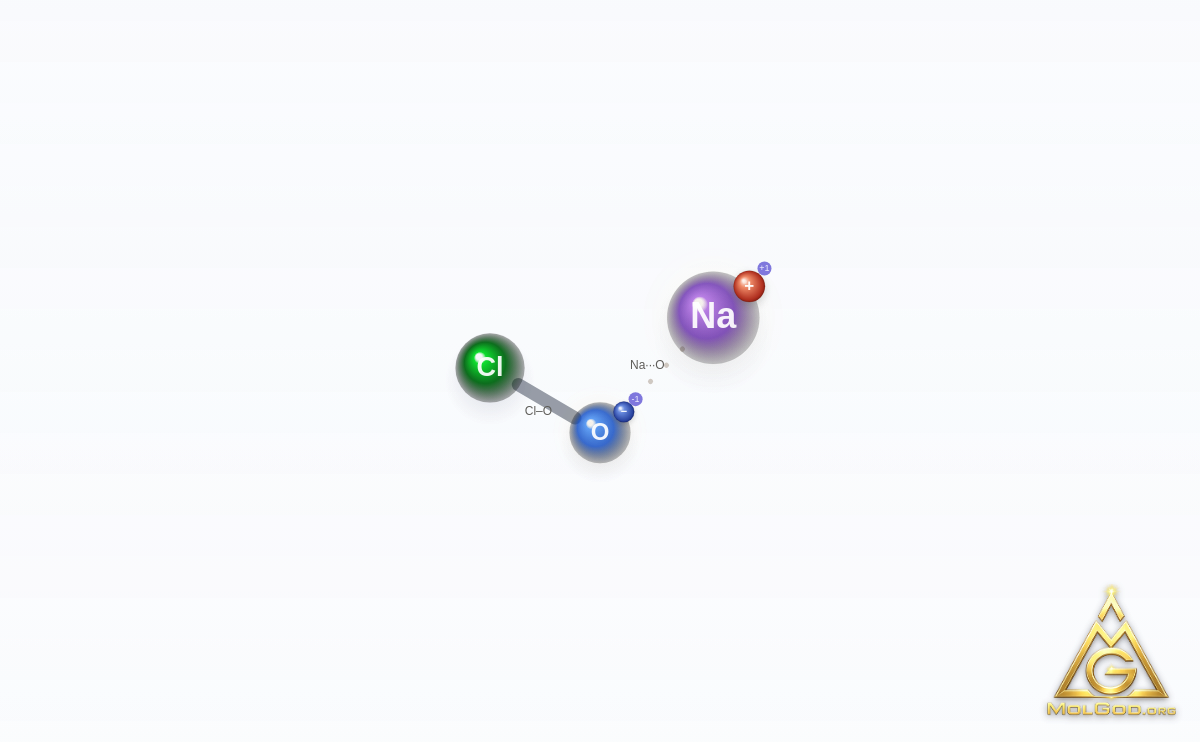

  • Sodium Hypochlorite (CAS 7681-52-9) – skeletal 3D model, MolGod Viewer
    skeletal 3D model

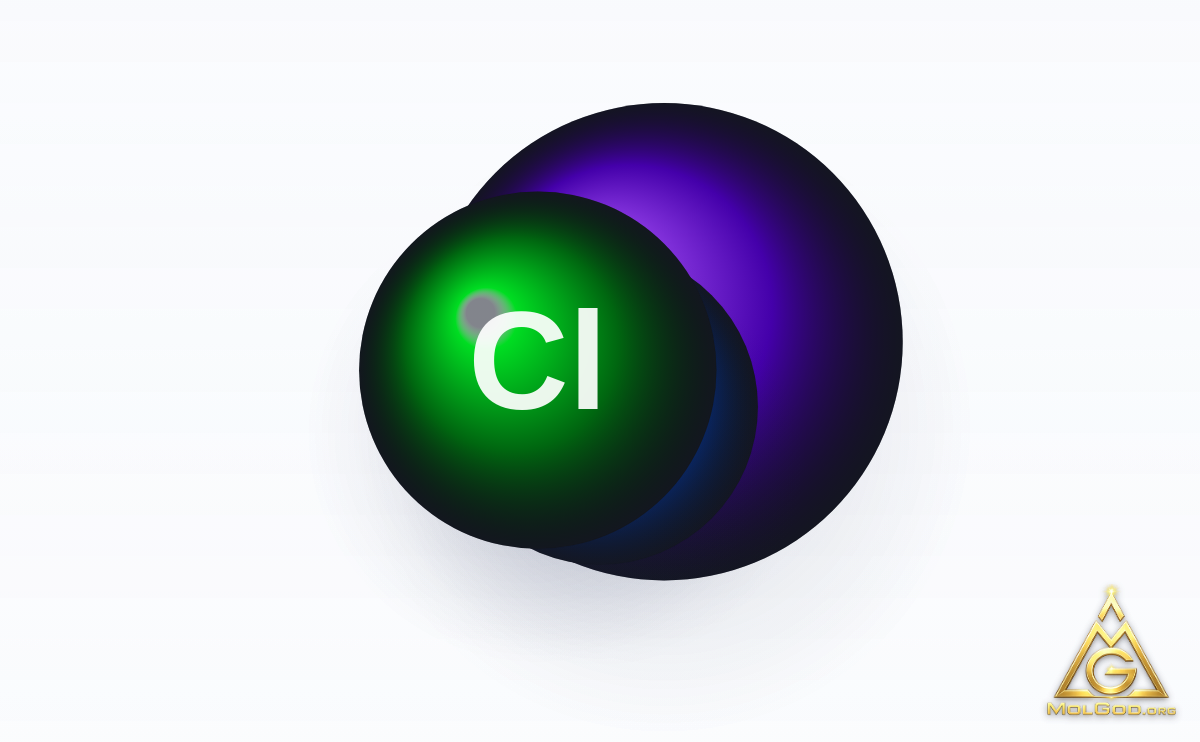

  • Sodium Hypochlorite (CAS 7681-52-9) – space-filling 3D model, MolGod Viewer
    space-filling 3D model

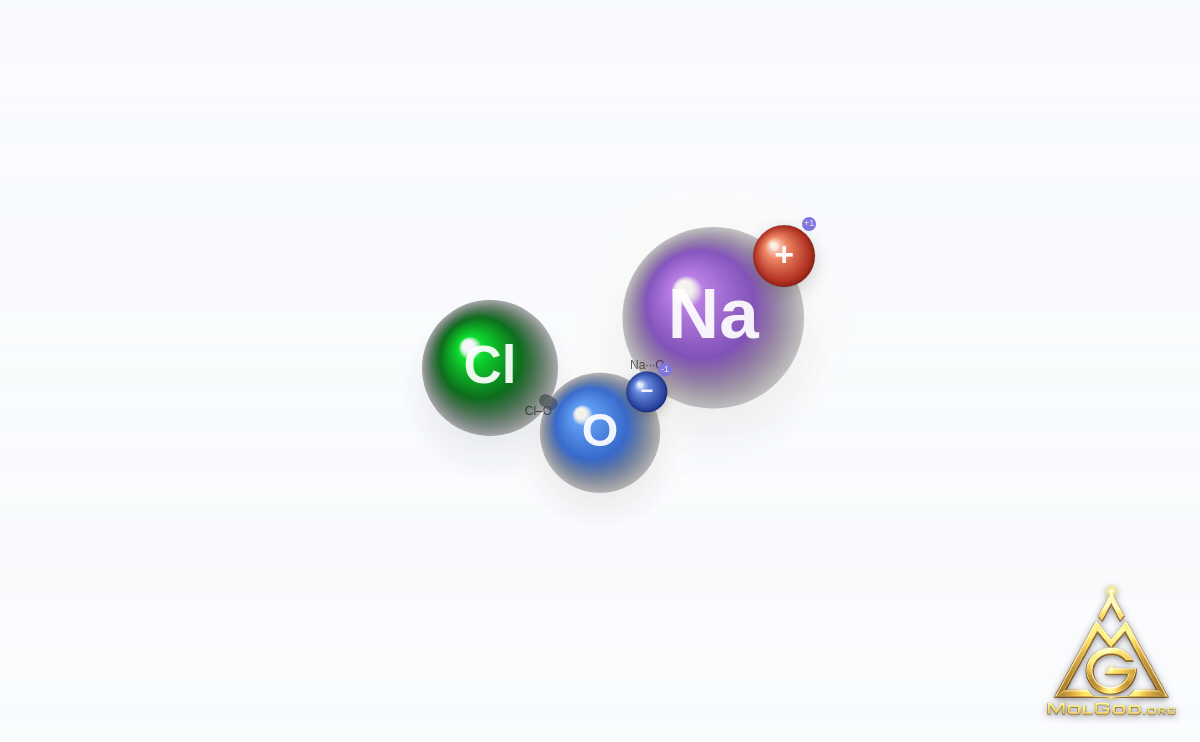

  • Sodium Hypochlorite (CAS 7681-52-9) – 2D structure, MolGod Viewer
    2D structure

© 2026 MolGod.org. All rights reserved. · Image rights

About Sodium Hypochlorite

Sodium Hypochlorite is a chemical compound registered under number CAS 7681-52-9, with the molecular formula NaClO, and a molar mass of 74.44 g/mol.

The molecule contains 3 atoms connected by 2 chemical bonds. The full systematic IUPAC name of this compound is sodium hypochlorite. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, polar surface area PSA = 23.1 Ų, 0 donors and 1 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The interactive 3D model and the viewer images are protected by copyright (© MolGod.org) — terms of use: molgod.org/copyright/.

Physicochemical properties
Molecular formulaNaClO
Molar mass74.44 g/mol
IUPACsodium hypochlorite
SMILES[O-]Cl.[Na+]
InChIKeySUKJFIGYRHOWBL-UHFFFAOYSA-N
logP (XLogP3)—
PSA23.1 Ų
HBD / HBA0 / 1
PubChem CIDCID 23665760 ↗
GHS safety

Signal word: Danger

GHS05
GHS05
GHS09
GHS09

H314 — Causes severe skin burns and eye damage

H318 — Causes serious eye damage

H400 — Very toxic to aquatic life

H410 — Very toxic to aquatic life with long lasting effects

EUH031 — Contact with acids liberates toxic gas.

Scientific literature

Related literature

20 articles · 18 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (number of articles: 20)

2004: number of articles 120042011: number of articles 22012: number of articles 12021: number of articles 120212025: number of articles 32026: number of articles 122026

Bar height = number of articles in a given year. Hover over a bar to see details.

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
SODIUM HYPOCHLORITE · 7681-52-9 · Antiformin · Clorox · Sodium oxychloride · Hypochlorous acid, sodium salt · Household bleach · Chlorox · Javex · Javelle water · Hypochlorite sodium · Youxiaolin · Chloros · Cloralex · Cloropool
Data sources
Related molecules
📜 License & provenancePREDICTED MODEL · NOT VERIFIEDMolGod_License_1

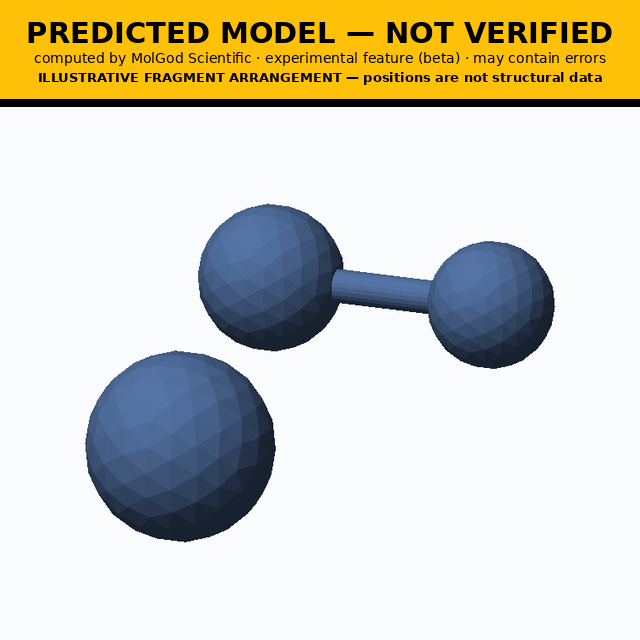

PREDICTED MODEL — NOT VERIFIED
computed by MolGod Scientific · experimental feature (beta) · may contain errors
ILLUSTRATIVE FRAGMENT ARRANGEMENT — relative positions are not structural data

No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94 force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.

This substance consists of 2 separate components (for example ions). Each component was computed separately; they are arranged radially around a layout anchor for visualisation only (at least 3.0 Å apart). Their relative positions are not a crystal structure, coordination geometry, ionic contacts or any experimentally determined arrangement.

Methods and references
  1. RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
  2. Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
  3. Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
  4. Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
  5. Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
  6. Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
  7. Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/23665760
  8. Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)
