Sanguinarine chloride

CAS 5578-73-4  ·  C₂₀H₁₄ClNO₄  ·  MW 367.8 g/mol

Loading molecule...
3D model Sanguinarine chloride, CAS 5578-73-4, molecular formula C₂₀H₁₄ClNO₄, molar mass 367.8 g/mol
About Sanguinarine chloride

Sanguinarine chloride is a chemical compound registered under number CAS 5578-73-4, with the molecular formula C₂₀H₁₄ClNO₄, and a molar mass of 367.8 g/mol.

The molecule contains 40 atoms connected by 44 chemical bonds. The full systematic IUPAC name of this compound is 24-methyl-5,7,18,20-tetraoxa-24-azoniahexacyclo[11.11.0.02,10.04,8.014,22.017,21]tetracosa-1(24),2,4(8),9,11,13,15,17(21),22-nonaene chloride. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, polar surface area PSA = 40.8 Ų, 0 donors and 5 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The widget above may be used for educational, research and commercial purposes.

Physicochemical properties
Molecular formulaC₂₀H₁₄ClNO₄
Molar mass367.8 g/mol
IUPAC24-methyl-5,7,18,20-tetraoxa-24-azoniahexacyclo[11.11.0.02,10.04,8.014,22.017,21]tetracosa-1(24),2,4(8),9,11,13,15,17(21),22-nonaene chloride
SMILESC[N+]1=C2C(=C3C=CC4=C(C3=C1)OCO4)C=CC5=CC6=C(C=C52)OCO6.[Cl-]
InChIKeyGIZKAXHWLRYMLE-UHFFFAOYSA-M
logP (XLogP3)—
PSA40.8 Ų
HBD / HBA0 / 5
PubChem CIDCID 68635 ↗
GHS safety

Signal word: Warning

GHS07
GHS07

H302 — Harmful if swallowed

Scientific literature

Related literature

14 articles · 3 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (number of articles: 14)

2004: number of articles 120042008: number of articles 12012: number of articles 12016: number of articles 12017: number of articles 12018: number of articles 12021: number of articles 120212022: number of articles 12023: number of articles 12024: number of articles 12025: number of articles 32026: number of articles 12026

Bar height = number of articles in a given year. Hover over a bar to see details.

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
SANGUINARINE CHLORIDE · RefChem:884540 · 621-641-8 · 5578-73-4 · Sanguinarium Chloride · Sanguinarine hydrochloride · Viadent · Sanguinarine chloride hydrate · Sanguinarine (chloride) · MFCD00012126 · 13-methyl-[1,3]dioxolo[4',5':4,5]benzo[1,2-c][1,3]dioxolo[4,5-i]phenanthridin-13-ium chloride · [1,3]Benzodioxolo[5,6-c]-1,3-dioxolo[4,5-i]phenanthridinium,13-methyl-, chloride (1:1) · CHEMBL490129 · B8Z8J4400H · Pseudochelerythrine chloride;Sanguinarium chloride
Data sources
Related molecules
📜 License & provenancePREDICTED MODEL · NOT VERIFIEDMolGod_License_1
PREDICTED MODEL — NOT VERIFIED
computed by MolGod Scientific · experimental feature (beta) · may contain errors
ILLUSTRATIVE FRAGMENT ARRANGEMENT — relative positions are not structural data

No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94 force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.

This substance consists of 2 separate components (for example ions). Each component was computed separately; they are arranged radially around a layout anchor for visualisation only (at least 3.0 Å apart). Their relative positions are not a crystal structure, coordination geometry, ionic contacts or any experimentally determined arrangement.

Methods and references
  1. RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
  2. Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
  3. Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
  4. Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
  5. Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
  6. Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
  7. Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/68635
  8. Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)

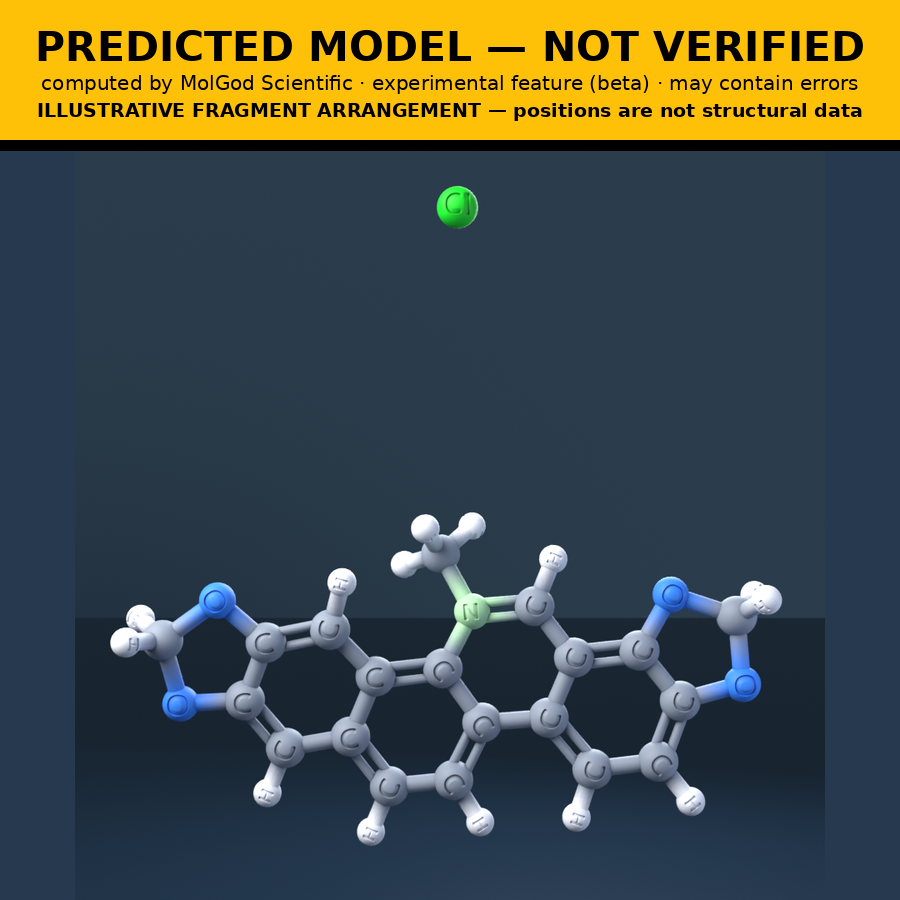

Sanguinarine chloride (CAS 5578-73-4), C₂₀H₁₄ClNO₄ - 3D ball-and-stick molecular model, engraved element symbols (C H Cl N O), MolGod STL previewDownload image

MG-STL-5578-73-4-ENGRAVED · 554,152 △ · 26 MB · SHA-256 d2e58ec81b0fba55

Download 3D model · ENGRAVED · C H Cl N O

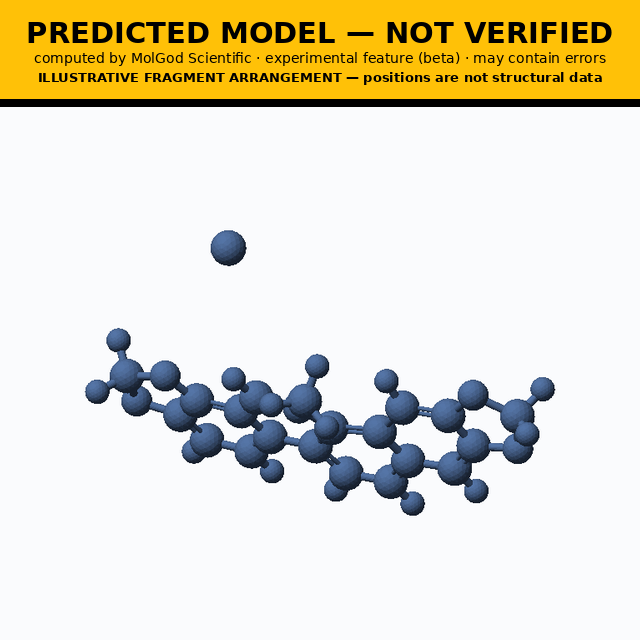

Sanguinarine chloride (CAS 5578-73-4), C₂₀H₁₄ClNO₄ - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG-STL-5578-73-4-NORMAL · 17,888 △ · 874 KB · SHA-256 d38460c7b6aad21b

Download 3D model

Model
Sanguinarine chloride · 5578-73-4
InChIKey
GIZKAXHWLRYMLE-UHFFFAOYSA-M
License
CC BY-SA 4.0 International (source rights undetermined — not yet granted)
Attribution
MolGod Scientific — Sanguinarine chloride (CAS 5578-73-4)
License & provenance record
Sanguinarine chloride (CAS 5578-73-4) →
MolGod molecule record
Sanguinarine chloride →
Source data
PubChem CID 68635 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 48804cd20b0d · generated 2026-10-14
SHA-256 (STL)
d38460c7b6aad21b7f4006301f709caed189bfc02d1c7a0d6d2571b55fbc1e50
MD5 (STL)
2c7805f224888d76a57c7f971774e4d0
Model identifier
MG-STL-5578-73-4
Transformation
MolGod Scientific ball-and-stick mesh
Changes
PREDICTED geometry computed by MolGod Scientific (RDKit), NOT verified; rendered as a triangulated mesh.
Wikimedia Commons
not published yet

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
