(3R)-Piperidin-3-amine--hydrogen chloride (1/2)
CAS 334618-23-4 · C₅H₁₄Cl₂N₂ · MW 173.08 g/mol
About (3R)-Piperidin-3-amine--hydrogen chloride (1/2)
(3R)-Piperidin-3-amine--hydrogen chloride (1/2) is a chemical compound registered under number CAS 334618-23-4, with the molecular formula C₅H₁₄Cl₂N₂, and a molar mass of 173.08 g/mol.
The molecule contains 23 atoms connected by 21 chemical bonds. The full systematic IUPAC name of this compound is (3R)-piperidin-3-amine;dihydrochloride. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.
In terms of physicochemical properties, polar surface area PSA = 38.1 Ų, 4 donors and 2 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.
Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The widget above may be used for educational, research and commercial purposes.
Physicochemical properties
| Molecular formula | C₅H₁₄Cl₂N₂ |
| Molar mass | 173.08 g/mol |
| IUPAC | (3R)-piperidin-3-amine;dihydrochloride |
| SMILES | C1C[C@H](CNC1)N.Cl.Cl |
| InChIKey | GGPNYXIOFZLNKW-ZJIMSODOSA-N |
| logP (XLogP3) | — |
| PSA | 38.1 Ų |
| HBD / HBA | 4 / 2 |
| PubChem CID | CID 16211333 ↗ |
GHS safety
Signal word: Danger
H302 — Harmful if swallowed
H315 — Causes skin irritation
H318 — Causes serious eye damage
H335 — May cause respiratory irritation
Scientific literature
Brak articles naukowych dla CAS 334618-23-4 w PubMed / OpenAlex / Semantic Scholar.
Synonyms
Data sources
- 📊 PubChem CID 16211333 — NIH
- 🔬 NIST WebBook — spectroscopy
- 🌐 Wikidata
- 💊 ChEMBL — bioactivity
Related molecules
📜 License & provenancePREDICTED MODEL · NOT VERIFIEDMolGod_License_1
computed by MolGod Scientific · experimental feature (beta) · may contain errors

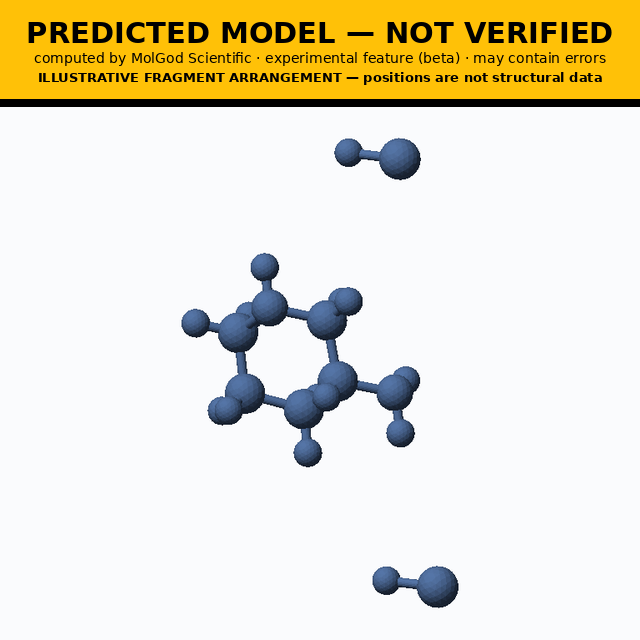

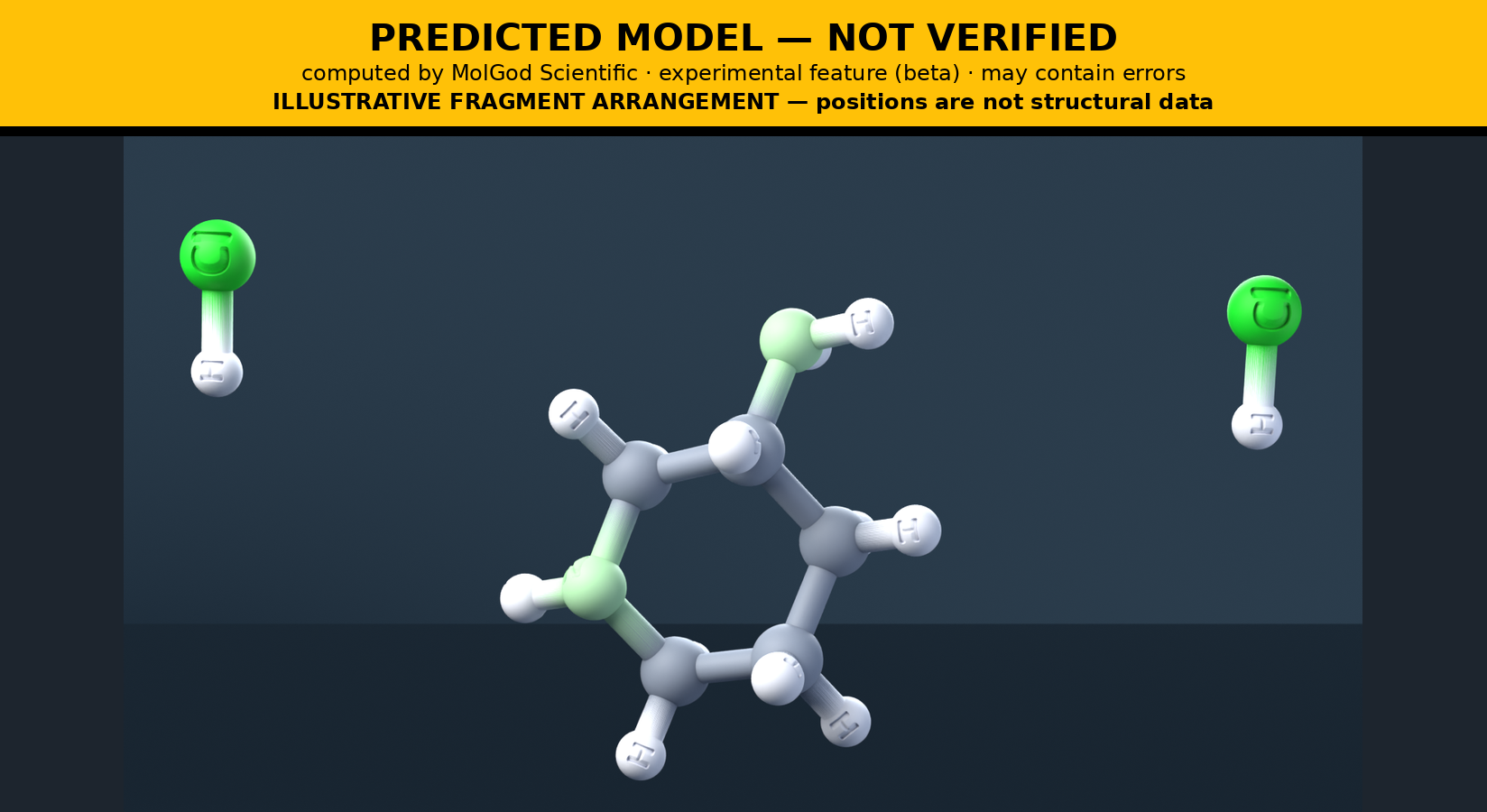

ILLUSTRATIVE FRAGMENT ARRANGEMENT — relative positions are not structural data
No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94+UFF force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.
This substance consists of 3 separate components (for example ions). Each component was computed separately; they are arranged radially around a layout anchor for visualisation only (at least 3.0 Å apart). Their relative positions are not a crystal structure, coordination geometry, ionic contacts or any experimentally determined arrangement.
Methods and references
- RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
- Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
- Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
- Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
- Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
- Rappe AK, Casewit CJ, Colwell KS, Goddard WA III, Skiff WM. UFF, a full periodic table force field for molecular mechanics and molecular dynamics simulations. J. Am. Chem. Soc. 1992, 114, 10024-10035. doi:10.1021/ja00051a040
- Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
- Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/16211333
- Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)
