tert-Butyl methacrylate

CAS 25189-00-8  ·  C8H14O2  ·  MW 142.20 g/mol

Full record: tert-Butyl methacrylate — Safety Data Sheet →

Loading molecule...
3D model tert-Butyl methacrylate, CAS 25189-00-8, molecular formula C8H14O2, molar mass 142.20 g/mol

Model views

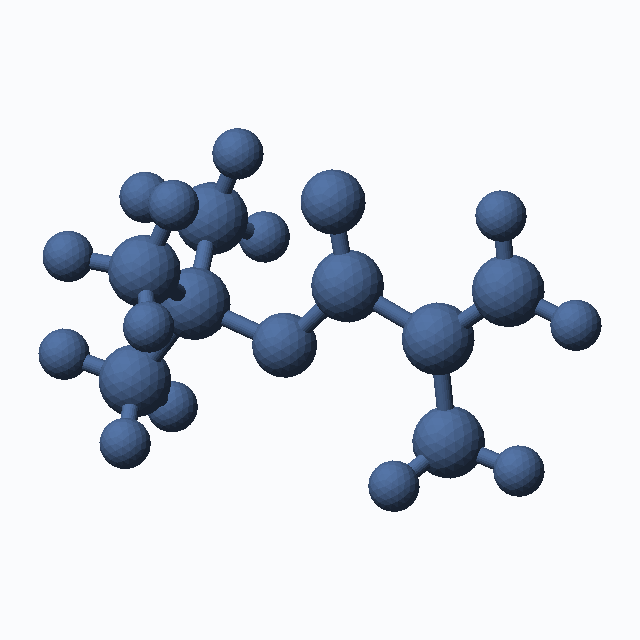

  • tert-Butyl methacrylate molecule chemical structure – ball-and-stick 3D model, molecular formula C8H14O2: 24 atoms (8 carbon, 14 hydrogen, 2 oxygen) joined by single and double bonds, MolGod Viewer
    ball-and-stick 3D model
  • tert-Butyl methacrylate molecule chemical structure – skeletal 3D model, molecular formula C8H14O2: 24 atoms (8 carbon, 14 hydrogen, 2 oxygen) joined by single and double bonds, MolGod Viewer
    skeletal 3D model
  • space-filling 3D model – rotation animation
  • tert-Butyl methacrylate molecule chemical structure – 2D structure, molecular formula C8H14O2: 24 atoms (8 carbon, 14 hydrogen, 2 oxygen) joined by single and double bonds, MolGod Viewer
    2D structure

© 2026 MolGod.org. All rights reserved. · Image rights

🖨️ 3D print model & licenseMolGod_Print3D_1
tert-Butyl methacrylate, C8H14O2, CAS 25189-00-8 - 3D molecular model
© MolGod.org — All rights reserved · image rights

MG_999-489-574-32 · engraved · 391,602 △ · 19 MB · SHA-256 33f19e258c808769

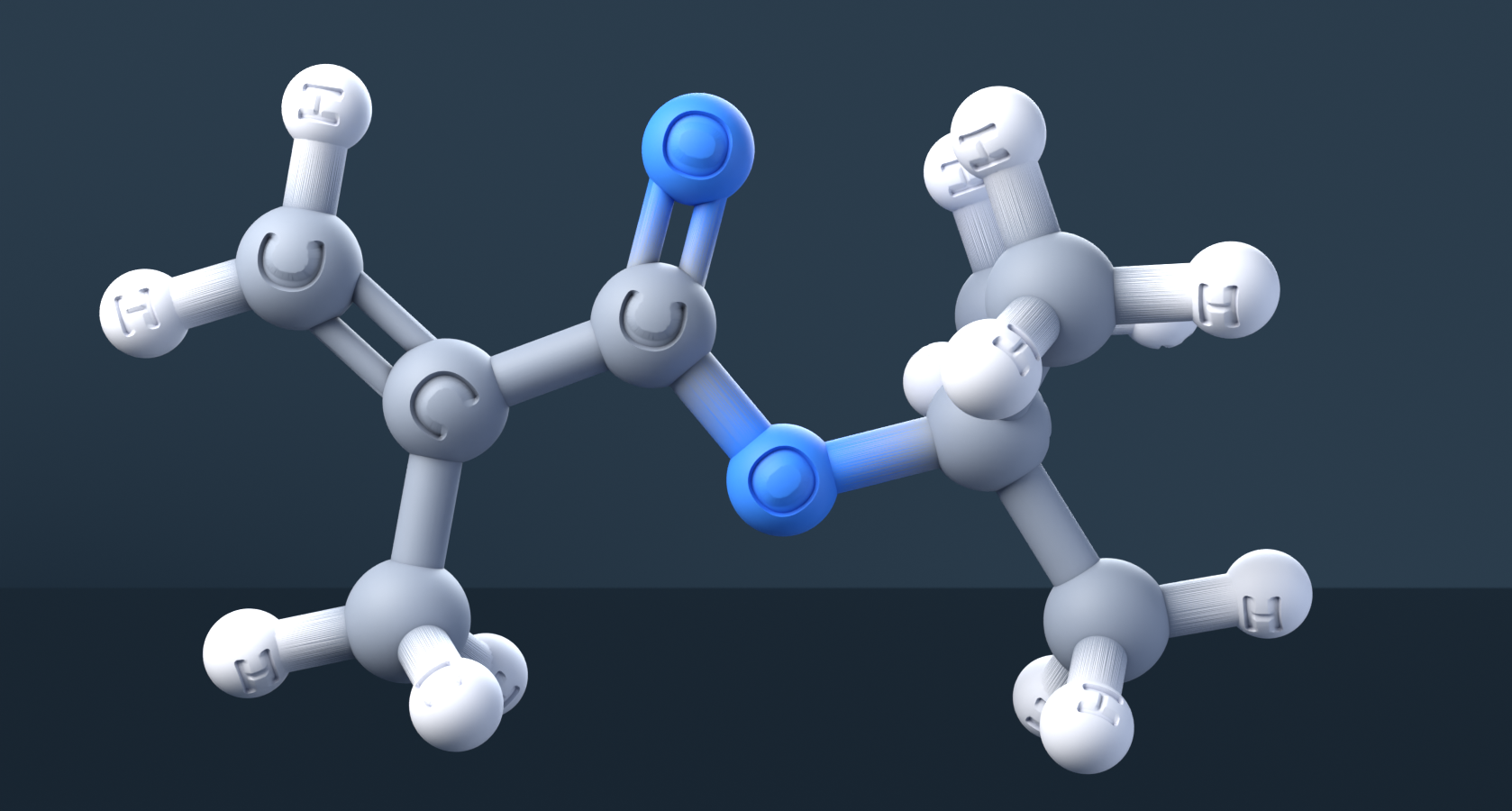

Download 3D model: Tert-Butyl methacrylate, C8H14O2, CAS 25189-00-8 · ENGRAVED (C, H, O) · 19 MB

tert-Butyl methacrylate (CAS 25189-00-8), C8H14O2 - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG_999-489-574-32 · normal · 10,080 △ · 492 KB · SHA-256 811667a420b58768

Download 3D model: Tert-Butyl methacrylate, C8H14O2, CAS 25189-00-8 · NORMAL · 492 KB

License & provenance ↓

⚠️ The MolGod.org name and logo, including the raised logo on the base, are our trademark. The CC BY-SA 4.0 licence does not cover trademarks (section 2(b)(2)). Do not use the MolGod.org logo to brand your own products, in advertising, or in any way that suggests our endorsement without our written permission.

About tert-Butyl methacrylate

tert-Butyl methacrylate is a chemical compound registered under number CAS 25189-00-8, with the molecular formula C8H14O2, and a molar mass of 142.20 g/mol.

The molecule contains 24 atoms connected by 23 chemical bonds. The full systematic IUPAC name of this compound is tert-butyl 2-methylprop-2-enoate. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, the partition coefficient logP = 2.5 (positive value, a lipophilic compound), polar surface area PSA = 26.3 Ų, 0 donors and 2 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The interactive 3D model and the viewer images are protected by copyright (© MolGod.org) — terms of use: molgod.org/copyright/.

Physicochemical properties
Molecular formulaC8H14O2
Molar mass142.20 g/mol
IUPACtert-butyl 2-methylprop-2-enoate
SMILESCC(=C)C(=O)OC(C)(C)C
InChIKeySJMYWORNLPSJQO-UHFFFAOYSA-N
logP (XLogP3)2.5
PSA26.3 Ų
HBD / HBA0 / 2
PubChem CIDCID 11448 ↗
GHS safety

Signal word: Warning

GHS02
GHS02

H226 — Flammable liquid and vapour

H315 — Causes skin irritation

H319 — Causes serious eye irritation

H335 — May cause respiratory irritation

Scientific literature

Related literature

1 articles · 0 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
tert-Butyl methacrylate · 585-07-9 · T-BUTYL METHACRYLATE · Methacrylic acid, tert-butyl ester · 2-Propenoic acid, 2-methyl-, 1,1-dimethylethyl ester · tert-Butyl 2-methylacrylate · CCRIS 7039 · 1,1-Dimethylethyl 2-methyl-2-propenoate · EINECS 209-548-7 · NSC 20957 · tert-Butyl 2-methylpropenoate · 1,1-dimethylethyl methacrylate · BRN 1746394 · tert-Butyl alcohol methacrylate · NSC-20957
Data sources
Related molecules
📜 License & provenanceMolGod_License_1
COMPUTED — PubChem3D · 3D conformer computed by PubChem using OMEGA; not an experimental structure.
Model
tert-Butyl methacrylate · 25189-00-8
InChIKey
SJMYWORNLPSJQO-UHFFFAOYSA-N
License
CC BY-SA 4.0 International
Attribution
MolGod Scientific — tert-Butyl methacrylate (CAS 25189-00-8)
License & provenance record
tert-Butyl methacrylate (CAS 25189-00-8) →
MolGod molecule record
tert-Butyl methacrylate →
Source data
PubChem CID 11448 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 48804cd20b0d · generated 2026-10-14
SHA-256 (STL)
811667a420b587686c387ea35f4314b1f4083dd45052f8b40e3fda1d08d83357
MD5 (STL)
df5475c557025caed6123c0cbaecf465
MolGod Identification Number
MG_999-489-574-32
Transformation
MolGod Scientific ball-and-stick mesh
Changes
Converted into a triangulated molecular mesh; atomic coordinates and connectivity unchanged.
Wikimedia Commons
not published yet
Free printable molecule model
Download the model, print it and use it in education. When you publish a photo, a material or an adaptation, the CC BY-SA 4.0 International licence requires you to credit “MolGod Scientific” as the author of the model, link to the original and to the licence text, indicate any changes you made and share adaptations under the same licence. A ready-to-use attribution text is in this section. No sign-up, no fees and no obligation to leave a review.

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
