(R)-3-Amino-1-N-Cbz-pyrrolidine

CAS 122536-73-6  ·  C12H16N2O2  ·  MW 220.27 g/mol

Full record: (R)-3-Amino-1-N-Cbz-pyrrolidine — Safety Data Sheet →

Loading molecule...
3D model (R)-3-Amino-1-N-Cbz-pyrrolidine, CAS 122536-73-6, molecular formula C12H16N2O2, molar mass 220.27 g/mol

Model views

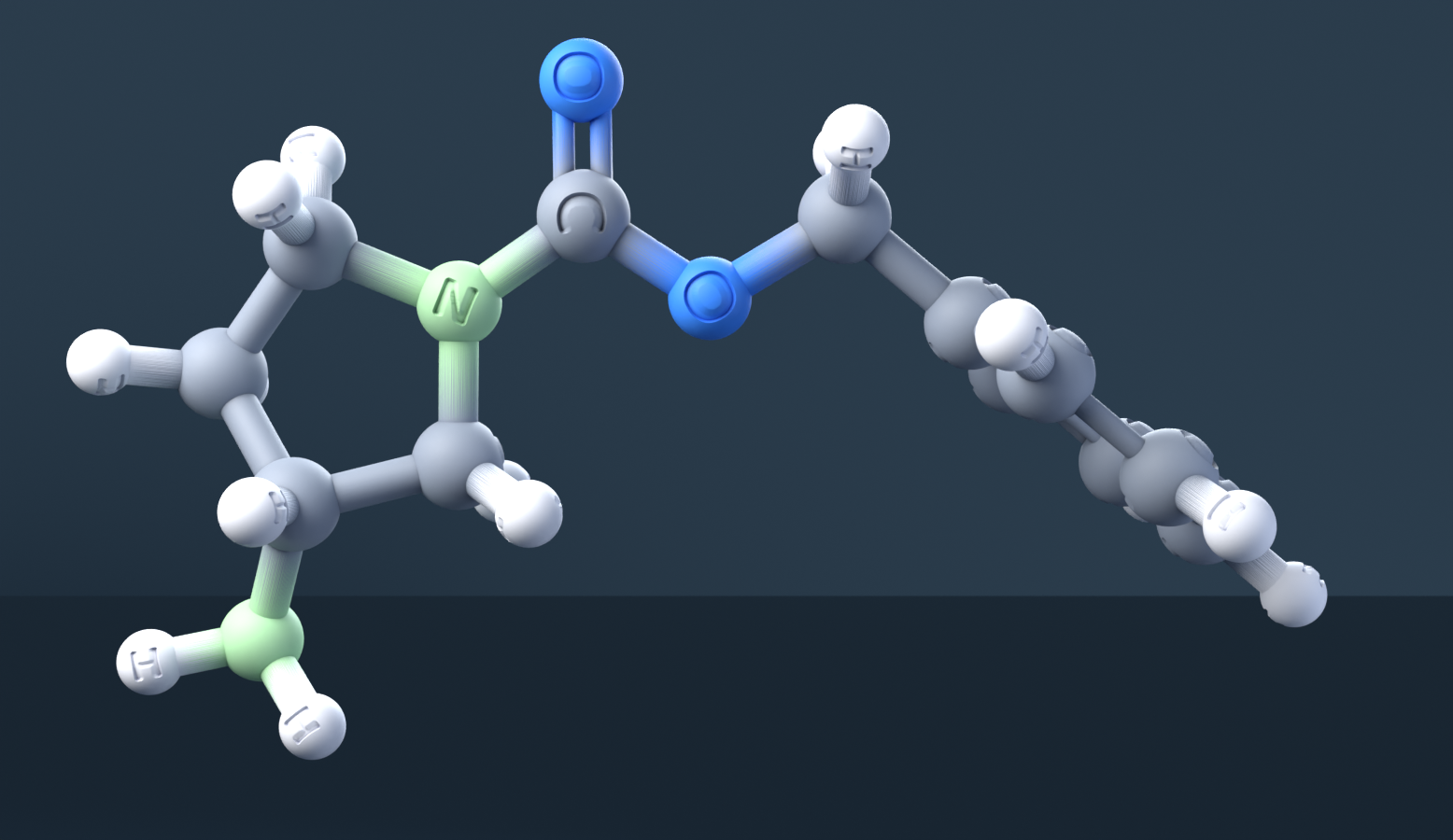

  • (R)-3-Amino-1-N-Cbz-pyrrolidine molecule chemical structure – ball-and-stick 3D model, molecular formula C12H16N2O2: 32 atoms (12 carbon, 16 hydrogen, 2 nitrogen, 2 oxygen) joined by single and double bonds, with an aromatic ring, MolGod Viewer
    ball-and-stick 3D model
  • (R)-3-Amino-1-N-Cbz-pyrrolidine molecule chemical structure – skeletal 3D model, molecular formula C12H16N2O2: 32 atoms (12 carbon, 16 hydrogen, 2 nitrogen, 2 oxygen) joined by single and double bonds, with an aromatic ring, MolGod Viewer
    skeletal 3D model
  • space-filling 3D model – rotation animation
  • (R)-3-Amino-1-N-Cbz-pyrrolidine molecule chemical structure – 2D structure, molecular formula C12H16N2O2: 32 atoms (12 carbon, 16 hydrogen, 2 nitrogen, 2 oxygen) joined by single and double bonds, with an aromatic ring, MolGod Viewer
    2D structure

© 2026 MolGod.org. All rights reserved. · Image rights

🖨️ 3D print model & licenseMolGod_Print3D_1
(R)-3-Amino-1-N-Cbz-pyrrolidine, C12H16N2O2, CAS 122536-73-6 - 3D molecular model
© MolGod.org — All rights reserved · image rights

MG_740-344-957-29 · engraved · 533,680 △ · 25 MB · SHA-256 c077e882caa29a14

Download 3D model: (R)-3-Amino-1-N-Cbz-pyrrolidine, C12H16N2O2, CAS 122536-73-6 · ENGRAVED (C, H, N, O) · 25 MB

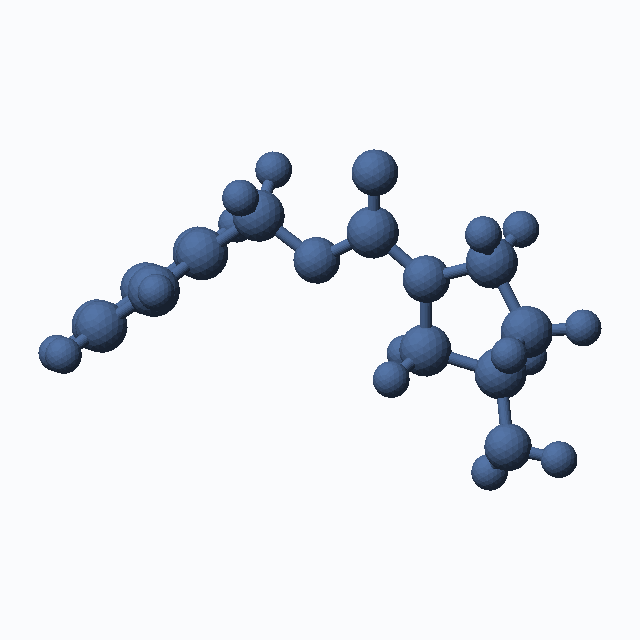

(R)-3-Amino-1-N-Cbz-pyrrolidine (CAS 122536-73-6), C12H16N2O2 - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG_740-344-957-29 · normal · 13,792 △ · 674 KB · SHA-256 8fd80ea08a933063

Download 3D model: (R)-3-Amino-1-N-Cbz-pyrrolidine, C12H16N2O2, CAS 122536-73-6 · NORMAL · 674 KB

License & provenance ↓

⚠️ The MolGod.org name and logo, including the raised logo on the base, are our trademark. The CC BY-SA 4.0 licence does not cover trademarks (section 2(b)(2)). Do not use the MolGod.org logo to brand your own products, in advertising, or in any way that suggests our endorsement without our written permission.

About (R)-3-Amino-1-N-Cbz-pyrrolidine

(R)-3-Amino-1-N-Cbz-pyrrolidine is a chemical compound registered under number CAS 122536-73-6, with the molecular formula C12H16N2O2, and a molar mass of 220.27 g/mol.

The molecule contains 32 atoms connected by 33 chemical bonds. The full systematic IUPAC name of this compound is benzyl (3R)-3-aminopyrrolidine-1-carboxylate. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, the partition coefficient logP = 0.9 (positive value, a lipophilic compound), polar surface area PSA = 55.6 Ų, 1 donors and 3 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The interactive 3D model and the viewer images are protected by copyright (© MolGod.org) — terms of use: molgod.org/copyright/.

Physicochemical properties
Molecular formulaC12H16N2O2
Molar mass220.27 g/mol
IUPACbenzyl (3R)-3-aminopyrrolidine-1-carboxylate
SMILESC1CN(C[C@@H]1N)C(=O)OCC2=CC=CC=C2
InChIKeyFPXJNSKAXZNWMQ-LLVKDONJSA-N
logP (XLogP3)0.9
PSA55.6 Ų
HBD / HBA1 / 3
PubChem CIDCID 1519356 ↗
GHS safety

Signal word: Warning

GHS07
GHS07

H302 — Harmful if swallowed

H315 — Causes skin irritation

H319 — Causes serious eye irritation

H335 — May cause respiratory irritation

Scientific literature

Brak articles naukowych dla CAS 122536-73-6 w PubMed / OpenAlex / Semantic Scholar.

Synonyms
(R)-3-Amino-1-N-Cbz-pyrrolidine · RefChem:407273 · Phenylmethyl (3R)-3-amino-1-pyrrolidinecarboxylate · 602-786-6 · 122536-73-6 · (3R)-1-N-Cbz-3-Aminopyrrolidine · benzyl (3R)-3-aminopyrrolidine-1-carboxylate · MFCD05864624 · (R)-(-)-1-Cbz-3-aminopyrrolidine · (R)-1-Cbz-3-aminopyrrolidine · (R)-3-AMINO-1-CBZ-PYRROLIDINE · 1-Pyrrolidinecarboxylic acid, 3-amino-, phenylmethyl ester, (R)- · (R)-(-)-1-Cbz-3-aminopyrrolidine, 97% · 1-PYRROLIDINECARBOXYLIC ACID, 3-AMINO-, PHENYLMETHYL ESTER, (3R)- · (r)-benzyl
Data sources
Related molecules
📜 License & provenanceMolGod_License_1
COMPUTED — PubChem3D · 3D conformer computed by PubChem using OMEGA; not an experimental structure.
Model
(R)-3-Amino-1-N-Cbz-pyrrolidine · 122536-73-6
InChIKey
FPXJNSKAXZNWMQ-LLVKDONJSA-N
License
CC BY-SA 4.0 International
Attribution
MolGod Scientific — (R)-3-Amino-1-N-Cbz-pyrrolidine (CAS 122536-73-6)
License & provenance record
(R)-3-Amino-1-N-Cbz-pyrrolidine (CAS 122536-73-6) →
MolGod molecule record
(R)-3-Amino-1-N-Cbz-pyrrolidine →
Source data
PubChem CID 1519356 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 48804cd20b0d · generated 2026-10-14
SHA-256 (STL)
8fd80ea08a933063ad41b904b11de7a359c53a744984af1bcb505644d6fe35fe
MD5 (STL)
dbcc00e7872a6027a81667e2a51c0942
MolGod Identification Number
MG_740-344-957-29
Transformation
MolGod Scientific ball-and-stick mesh
Changes
Converted into a triangulated molecular mesh; atomic coordinates and connectivity unchanged.
Wikimedia Commons
not published yet
Free printable molecule model
Download the model, print it and use it in education. When you publish a photo, a material or an adaptation, the CC BY-SA 4.0 International licence requires you to credit “MolGod Scientific” as the author of the model, link to the original and to the licence text, indicate any changes you made and share adaptations under the same licence. A ready-to-use attribution text is in this section. No sign-up, no fees and no obligation to leave a review.

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
