Fenadiazole

CAS 1008-65-7  ·  C8H6N2O2  ·  MW 162.15 g/mol

Loading molecule...

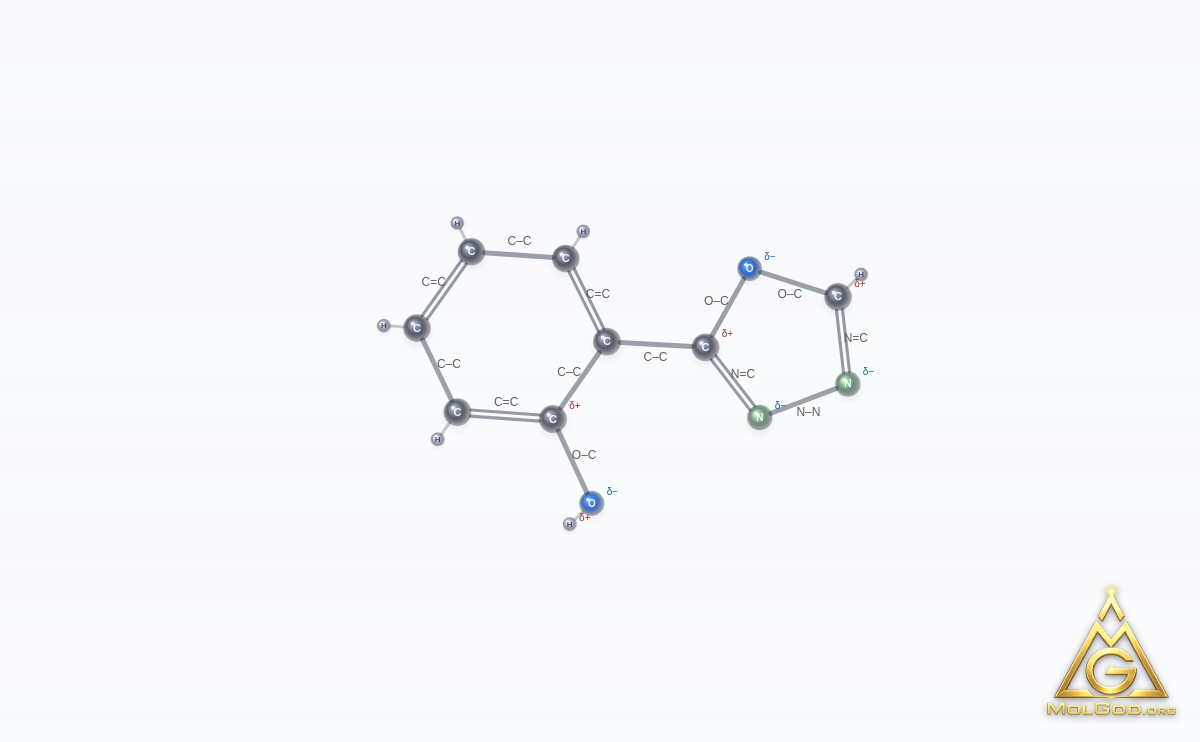

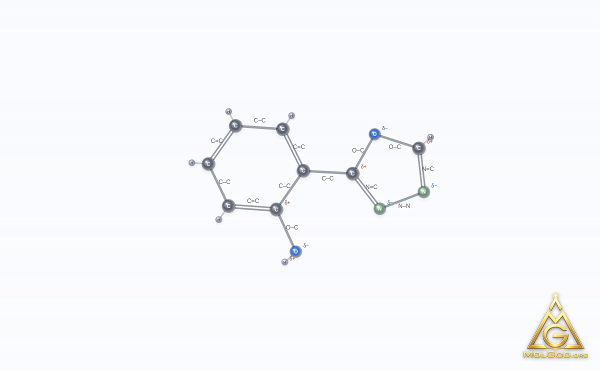

3D model Fenadiazole, CAS 1008-65-7, molecular formula C8H6N2O2, molar mass 162.15 g/mol
About Fenadiazole

Fenadiazole is a chemical compound registered under number CAS 1008-65-7, with the molecular formula C8H6N2O2, and a molar mass of 162.15 g/mol.

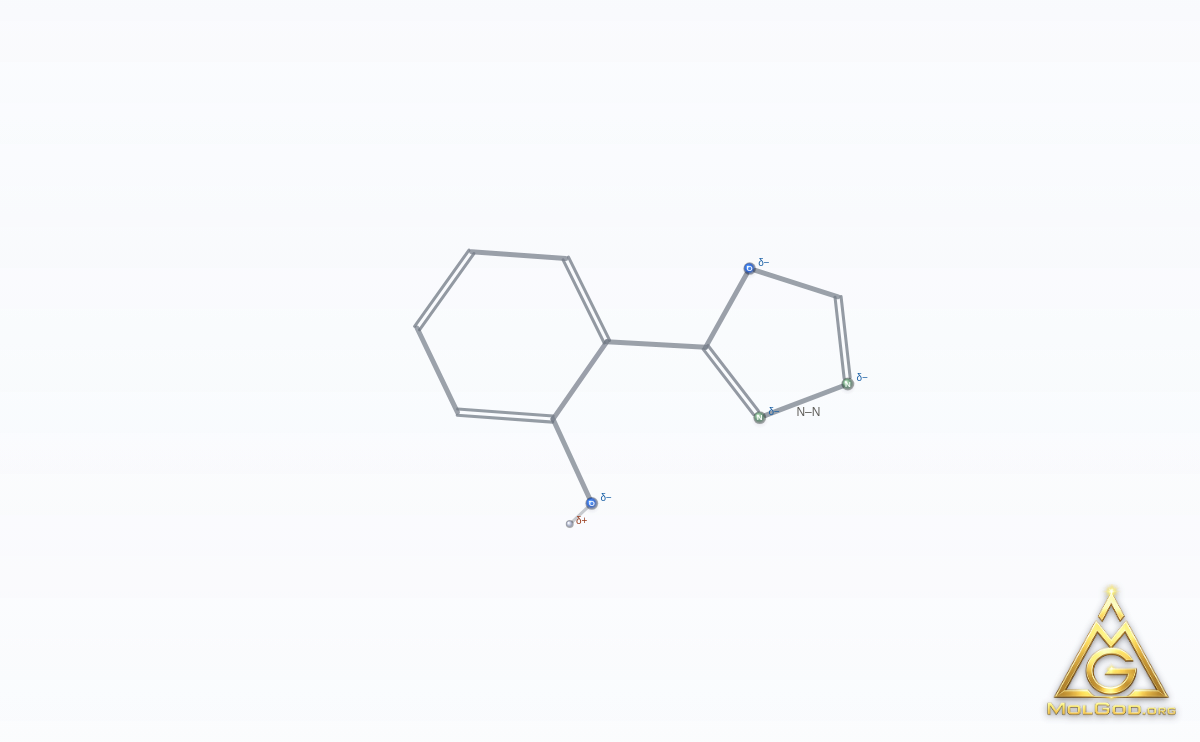

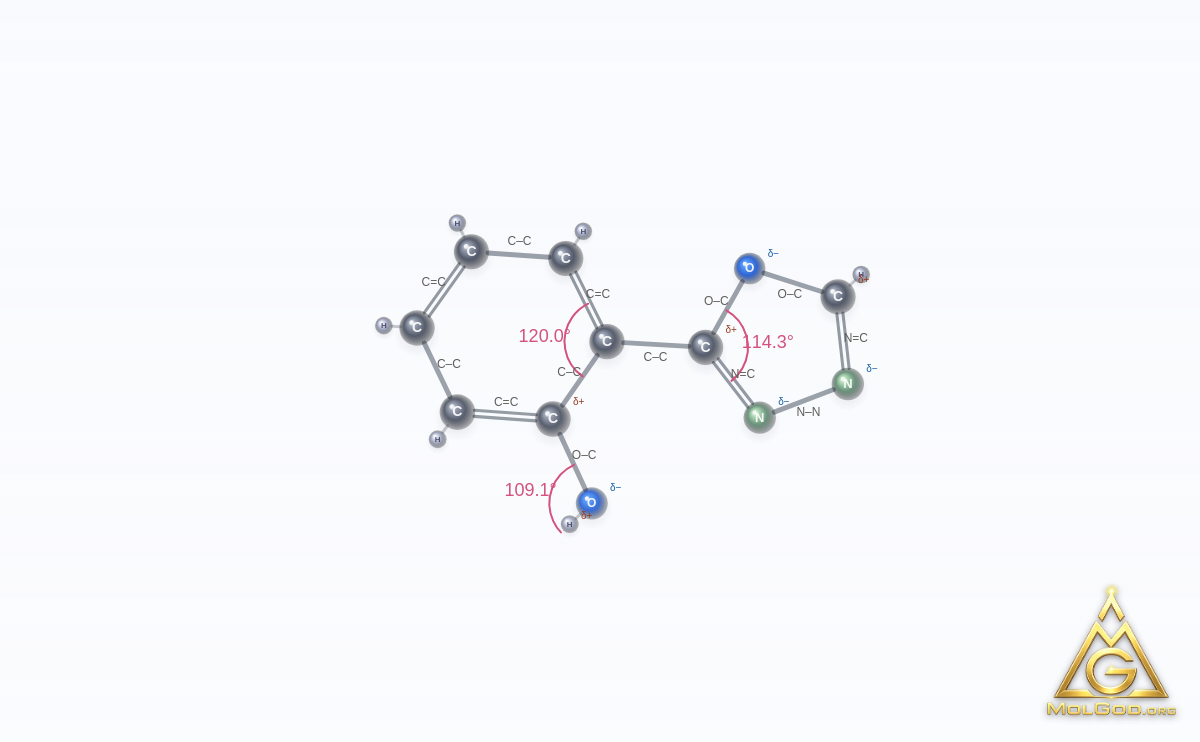

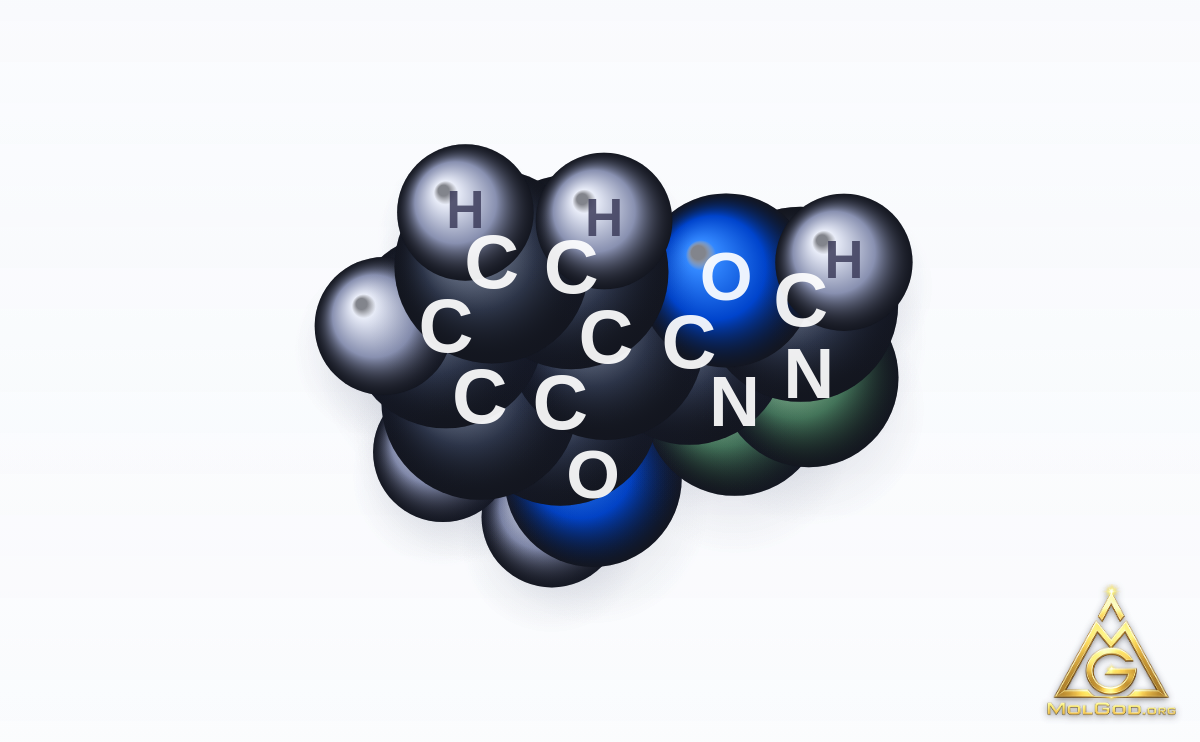

The molecule contains 18 atoms connected by 19 chemical bonds. The full systematic IUPAC name of this compound is 2-(1,3,4-oxadiazol-2-yl)phenol. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, the partition coefficient logP = 1.1 (positive value, a lipophilic compound), polar surface area PSA = 59.2 Ų, 1 donors and 4 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The widget above may be used for educational, research and commercial purposes.

Physicochemical properties
Molecular formulaC8H6N2O2
Masa molowa162.15 g/mol
IUPAC2-(1,3,4-oxadiazol-2-yl)phenol
SMILESC1=CC=C(C(=C1)C2=NN=CO2)O
InChIKeyOINXXHYENYVYPB-UHFFFAOYSA-N
logP (XLogP3)1.1
PSA59.2 Ų
HBD / HBA1 / 4
PubChem CIDCID 13883 ↗
GHS safety

Signal word: Warning

GHS07
GHS07

H315 — Działa drażniąco na skórę

H319 — Działa drażniąco na oczy

H335 — Może powodować podrażnienie dróg oddechowych

Scientific literature

Related literature

13 articles · 3 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filtry:Eksport:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (13 articles)

1963: 2 articles19631964: 1 articles1993: 1 articles2001: 1 articles2009: 1 articles2017: 2 articles20172021: 1 articles2022: 1 articles2025: 1 articles2026: 1 articles2026

Bar height = number of articles per year. Hover dla szczegółów.

Dane z PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary wygenerowane przez Semantic Scholar TLDR. Artykuły z ikoną wymagają płatnego dostępu.

Data sources
Related molecules
📜 License & provenanceMolGod_License_1

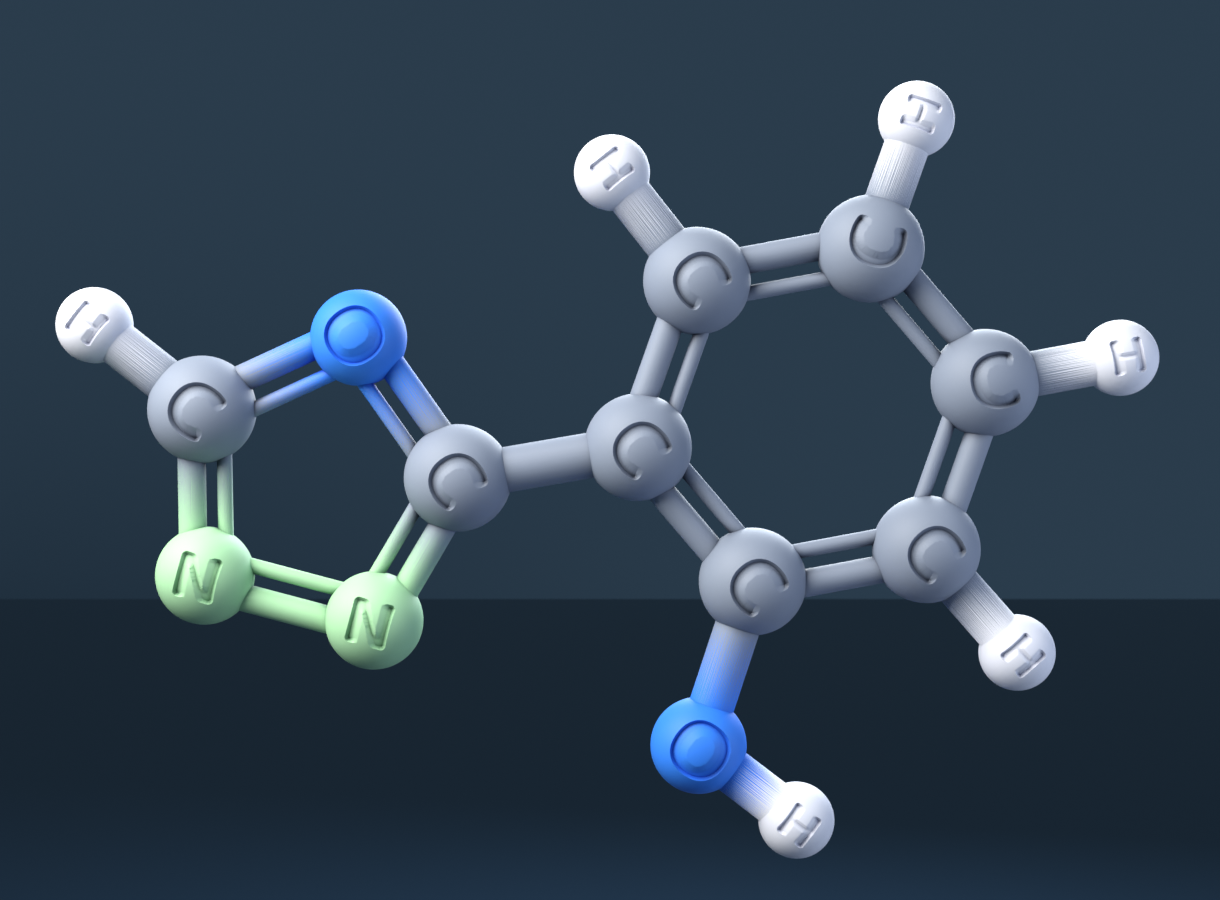

Fenadiazole (CAS 1008-65-7), C8H6N2O2 - 3D ball-and-stick molecular model, engraved element symbols (C H N O), MolGod STL previewPobierz obraz

MG-STL-1008-65-7-GRAVERED · 256,756 △ · 12 MB · SHA-256 4df3332464dc42c1

Download 3D model · C H N O

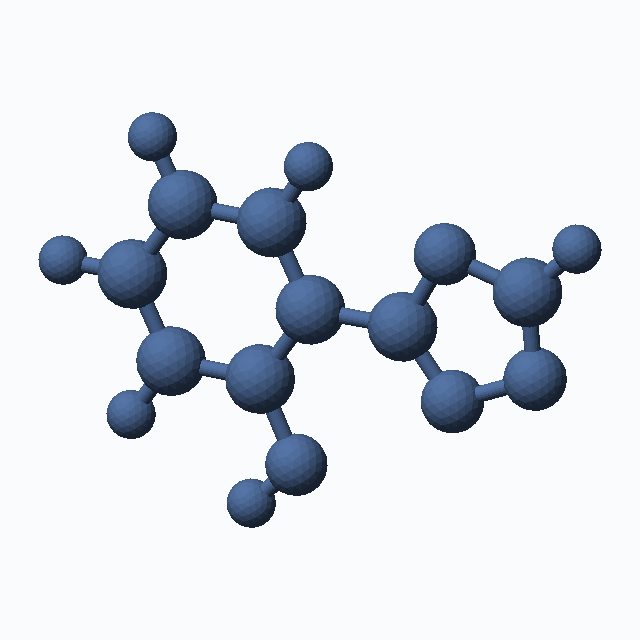

Fenadiazole (CAS 1008-65-7), C8H6N2O2 - 3D ball-and-stick molecular model, MolGod STL previewPobierz obraz

MG-STL-1008-65-7-NORMAL · 7,584 △ · 370 KB · SHA-256 91bc2df205774ce5

Download 3D model

Model
Fenadiazole · 1008-65-7
InChIKey
OINXXHYENYVYPB-UHFFFAOYSA-N
License
CC BY-SA 4.0 International
Attribution
MolGod Scientific — Fenadiazole (CAS 1008-65-7)
License & provenance record
Fenadiazole (CAS 1008-65-7) →
MolGod molecule record
Fenadiazole →
Source data
PubChem CID 13883 ↗
Model information
STL generated by MolGod · MolGod STL Exporter @ 8b6dfdd · generated 2026-09-25
SHA-256 (STL)
91bc2df205774ce5b7c9da6ee2e8425145cba1594d3f59a439777e0deecbbb99
MD5 (STL)
9b7ea1c616da6ca10a10aec9e66acc72
Model identifier
MG-STL-1008-65-7
Transformation
MolGod Scientific ball-and-stick mesh
Changes
Converted into a triangulated molecular mesh; atomic coordinates and connectivity unchanged.
Wikimedia Commons
not published yet

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
