柠檬酸镁

Name: 柠檬酸镁 (CAS 3344-18-1) ——完整化学数据集
Creator: MolGod.org
License: https://molgod.org/copyright/#data

CAS 3344-18-1 · C₁₂H₁₀Mg₃O₁₄ · MW 451.12 g/mol

模型视图

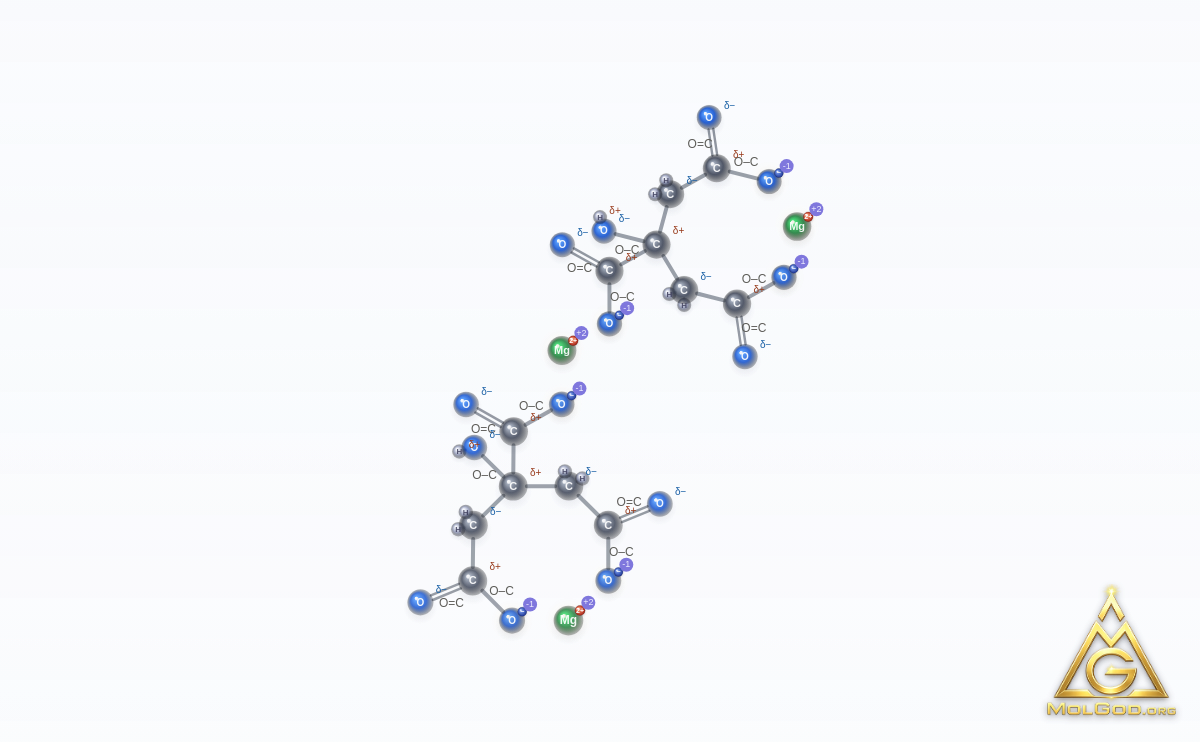

3D球棍模型

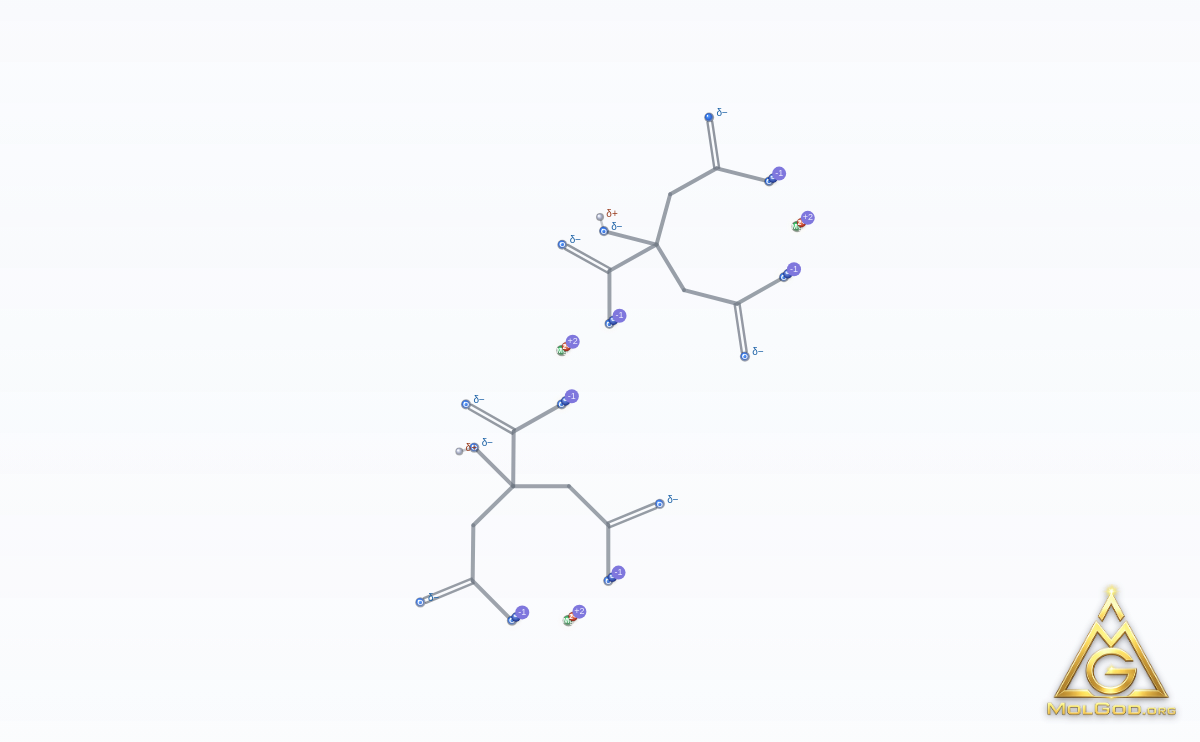

3D骨架模型

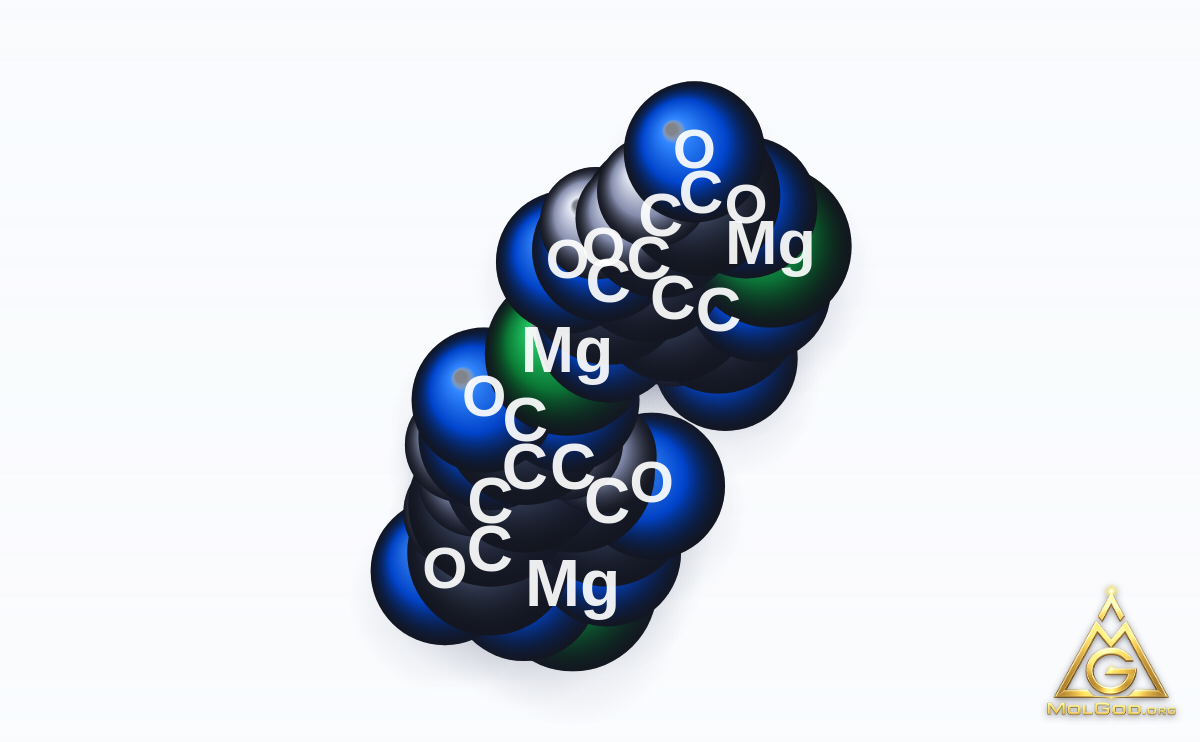

3D空间填充模型

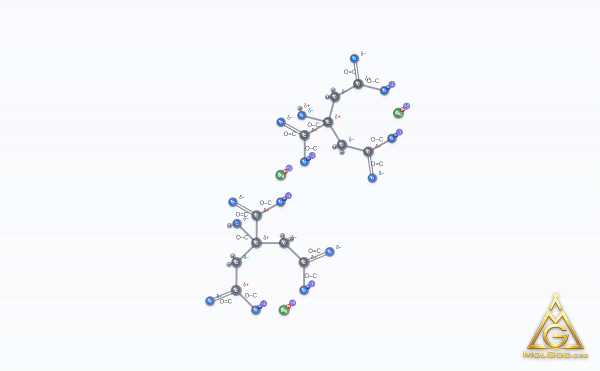

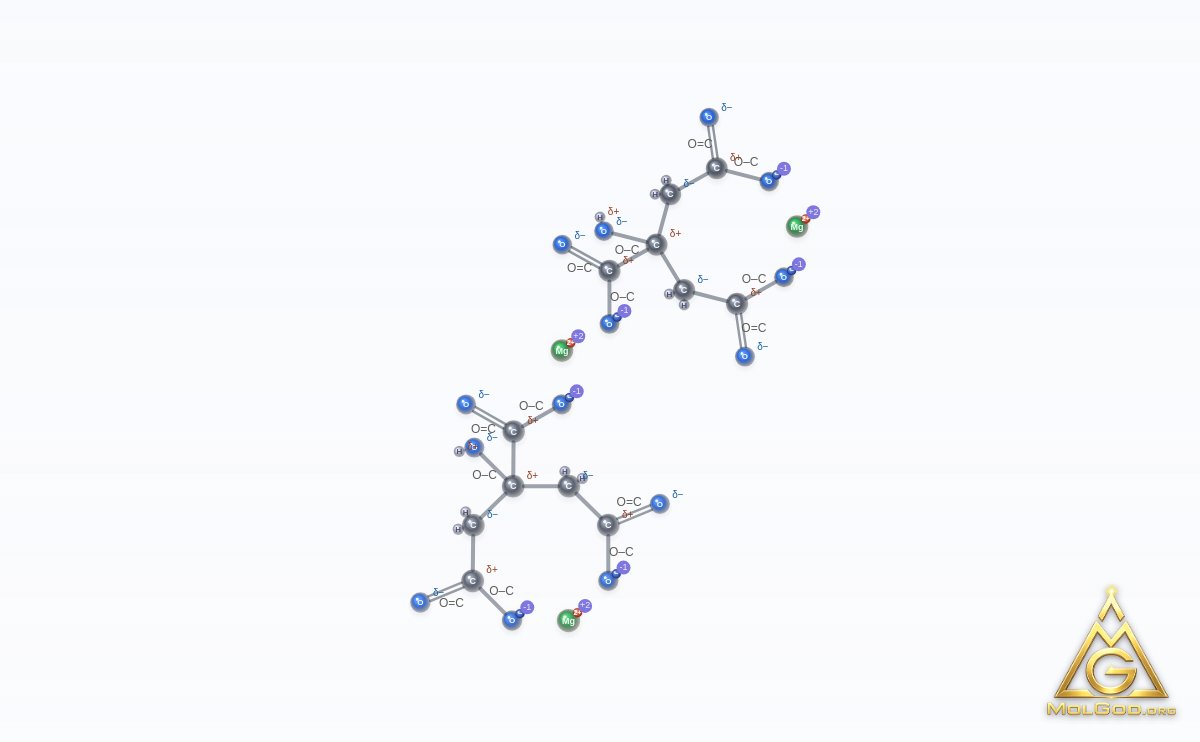

二维结构

关于柠檬酸镁

柠檬酸镁 是一种化学品，登记号为 CAS 3344-18-1，分子式为 C₁₂H₁₀Mg₃O₁₄，摩尔质量为 451.12 g/mol。

该分子包含 39 个原子，通过 34 个化学键连接。该化合物的完整系统 IUPAC 名称为 trimagnesium bis(2-hydroxypropane-1,2,3-tricarboxylate)。上方的交互式 3D 模型可查看原子的空间排列——您可以用鼠标旋转、用滚轮缩放，并在骨架 / 球棍 (Ball & Stick) / 空间填充 (Space Fill) 显示模式之间切换。

在理化性质方面，极性表面积 PSA = 281 Å²，2 个氢键供体和 14 个氢键受体。这些参数对于评估生物利用度以及与生物分子的相互作用至关重要。

该化合物的化学数据来自 PubChem（NIH NLM NCBI），全球最大的化学数据库之一。所有信息均自动更新，并附有符合 CLP 法规（EC 1272/2008）的 GHS 危险说明翻译。交互式3D模型和查看器图像受版权保护（© MolGod.org）——使用条款：molgod.org/copyright/。

理化性质

Molecular formula	C₁₂H₁₀Mg₃O₁₄
Molar mass	451.12 g/mol
IUPAC	trimagnesium bis(2-hydroxypropane-1,2,3-tricarboxylate)
SMILES	`C(C(=O)[O-])C(CC(=O)[O-])(C(=O)[O-])O.C(C(=O)[O-])C(CC(=O)[O-])(C(=O)[O-])O.[Mg+2].[Mg+2].[Mg+2]`
InChIKey	`PLSARIKBYIPYPF-UHFFFAOYSA-H`
logP (XLogP3)	—
PSA	281 Å²
HBD / HBA	2 / 14
PubChem CID	CID 6099959 ↗

科学文献

Brak articles naukowych dla CAS 3344-18-1 w PubMed / OpenAlex / Semantic Scholar.

同义词

Trimagnesium dicitrate · MAGNESIUM CITRATE · 3344-18-1 · Trimagnesium citrate · magnesium dicitrate · Citric acid, magnesium salt (2:3) · CITRAMAG · RHO26O1T9V · 1,2,3-Propanetricarboxylic acid, 2-hydroxy-, magnesium salt (2:3) · NSC-83517 · CHEBI:131391 · CHEBI:131389 · Citroma · Gadavyt · Magcit

数据来源

📊 PubChem CID 6099959 — NIH
🔬 NIST WebBook — 光谱
🌐 Wikidata
💊 ChEMBL — 生物活性

相关分子

Paracetamol (acetaminophen) (CAS 103-90-2) CAS 103-90-2 · C8H9NO2 Serotonin (CAS 50-67-9) CAS 50-67-9 · C10H12N2O Sodium (CAS 7440-23-5) CAS 7440-23-5 · Na n-hexane (CAS 110-54-3) CAS 110-54-3 · C6H14 Cinnamaldehyde (CAS 104-55-2) CAS 104-55-2 · C9H8O Noradrenaline (norepinephrine) (CAS 51-41-2) CAS 51-41-2 · C8H11NO3

📜 许可与来源PREDICTED MODEL · NOT VERIFIEDMolGod_License_1

PREDICTED MODEL — NOT VERIFIED
computed by MolGod Scientific · experimental feature (beta) · may contain errors
ILLUSTRATIVE FRAGMENT ARRANGEMENT — relative positions are not structural data

No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94 force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.

This substance consists of 5 separate components (for example ions). Each component was computed separately; they are arranged radially around a layout anchor for visualisation only (at least 3.0 Å apart). Their relative positions are not a crystal structure, coordination geometry, ionic contacts or any experimentally determined arrangement.

Methods and references

RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/6099959
Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)

ENGRAVEDNORMAL

trimagnesium dicitrate (CAS 3344-18-1), C₁₂H₁₀Mg₃O₁₄ - 3D ball-and-stick molecular model, engraved element symbols (C H Mg O), MolGod STL preview

MG-STL-3344-18-1-ENGRAVED · 592,022 △ · 28 MB · SHA-256 adba5ab9f6fec2eb

下载 3D 模型 · ENGRAVED · C H Mg O

trimagnesium dicitrate (CAS 3344-18-1), C₁₂H₁₀Mg₃O₁₄ - 3D ball-and-stick molecular model, MolGod STL preview

MG-STL-3344-18-1-NORMAL · 16,320 △ · 797 KB · SHA-256 48a4fe6693495502

下载 3D 模型

模型: trimagnesium dicitrate · 3344-18-1
InChIKey: PLSARIKBYIPYPF-UHFFFAOYSA-H
许可协议: CC BY-SA 4.0 International (来源权利未确定 — 尚未授予)
署名: MolGod Scientific — trimagnesium dicitrate (CAS 3344-18-1)
许可与来源记录: trimagnesium dicitrate (CAS 3344-18-1) →
MolGod 分子记录: trimagnesium dicitrate →
源数据: PubChem CID 6099959 ↗
模型信息: 由 MolGod 生成的 STL · MolGod STL Exporter build 48804cd20b0d · 生成于 2026-10-14
SHA-256 (STL): 48a4fe6693495502fe7420147c217c2ed603b57d030797880f6ed3420abd48db
MD5 (STL): 359f3bdb0b1c2e0c0056219112463e89
模型标识符: MG-STL-3344-18-1
转换: MolGod Scientific 球棍模型网格
更改: PREDICTED geometry computed by MolGod Scientific (RDKit), NOT verified; rendered as a triangulated mesh.
Wikimedia Commons: 尚未发布

📄 下载 3D 模型 (797 KB)📄 下载 3D 模型 · ENGRAVED · C H Mg O · (28 MB)

本许可适用于 MolGod 创建的 STL 网格，不自动适用于第三方源材料。
