Potassium Perchlorate

CAS 7778-74-7  ·  KClO₄  ·  MW 138.55 g/mol

Loading molecule...

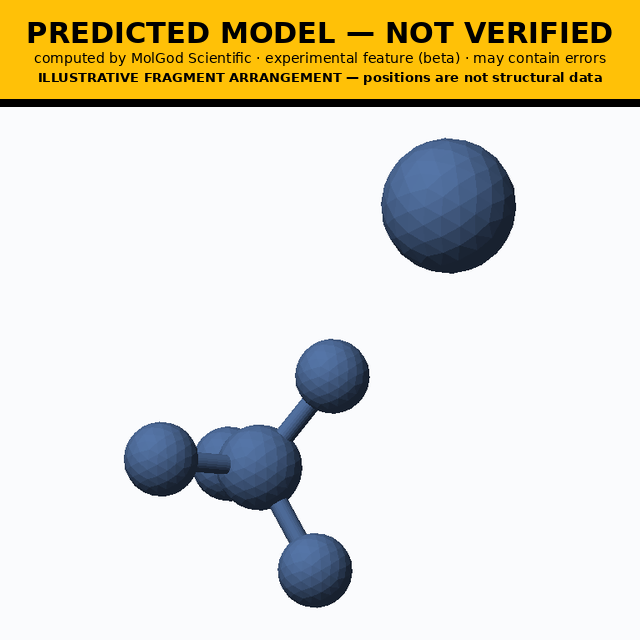

3D model Potassium Perchlorate, CAS 7778-74-7, molecular formula KClO₄, molar mass 138.55 g/mol
About Potassium Perchlorate

Potassium Perchlorate is a chemical compound registered under number CAS 7778-74-7, with the molecular formula KClO₄, and a molar mass of 138.55 g/mol.

The molecule contains 6 atoms connected by 5 chemical bonds. The full systematic IUPAC name of this compound is potassium perchlorate. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, polar surface area PSA = 74.3 Ų, 0 donors and 4 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The widget above may be used for educational, research and commercial purposes.

Physicochemical properties
Molecular formulaKClO₄
Molar mass138.55 g/mol
IUPACpotassium perchlorate
SMILES[O-]Cl(=O)(=O)=O.[K+]
InChIKeyYLMGFJXSLBMXHK-UHFFFAOYSA-M
logP (XLogP3)—
PSA74.3 Ų
HBD / HBA0 / 4
PubChem CIDCID 516900 ↗
GHS safety

Signal word: Danger

GHS03
GHS03
GHS07
GHS07

H271 — May cause fire or explosion; strong oxidiser

H302 — Harmful if swallowed

Scientific literature

Related literature

9 articles · 1 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (number of articles: 9)

1950: number of articles 119501959: number of articles 11960: number of articles 12004: number of articles 12007: number of articles 120072012: number of articles 12022: number of articles 12025: number of articles 12025

Bar height = number of articles in a given year. Hover over a bar to see details.

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
POTASSIUM PERCHLORATE · 7778-74-7 · Perchloracap · Perchloric acid, potassium salt · Astrumal · Peroidin · Irenat · Potassium hyperchloride · Potassium perchlorate (KClO4) · Spectrex Fire Extinguishant Formulation A · 42255P5X4D · Potassium perchlorate (USP) · Potassium perchlorate [USP] · DTXCID1027003 · NSC41873
Data sources
Related molecules
📜 License & provenancePREDICTED MODEL · NOT VERIFIEDMolGod_License_1
PREDICTED MODEL — NOT VERIFIED
computed by MolGod Scientific · experimental feature (beta) · may contain errors
ILLUSTRATIVE FRAGMENT ARRANGEMENT — relative positions are not structural data

No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94 force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.

This substance consists of 2 separate components (for example ions). Each component was computed separately; they are arranged radially around a layout anchor for visualisation only (at least 3.0 Å apart). Their relative positions are not a crystal structure, coordination geometry, ionic contacts or any experimentally determined arrangement.

Methods and references
  1. RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
  2. Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
  3. Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
  4. Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
  5. Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
  6. Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
  7. Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/516900
  8. Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)

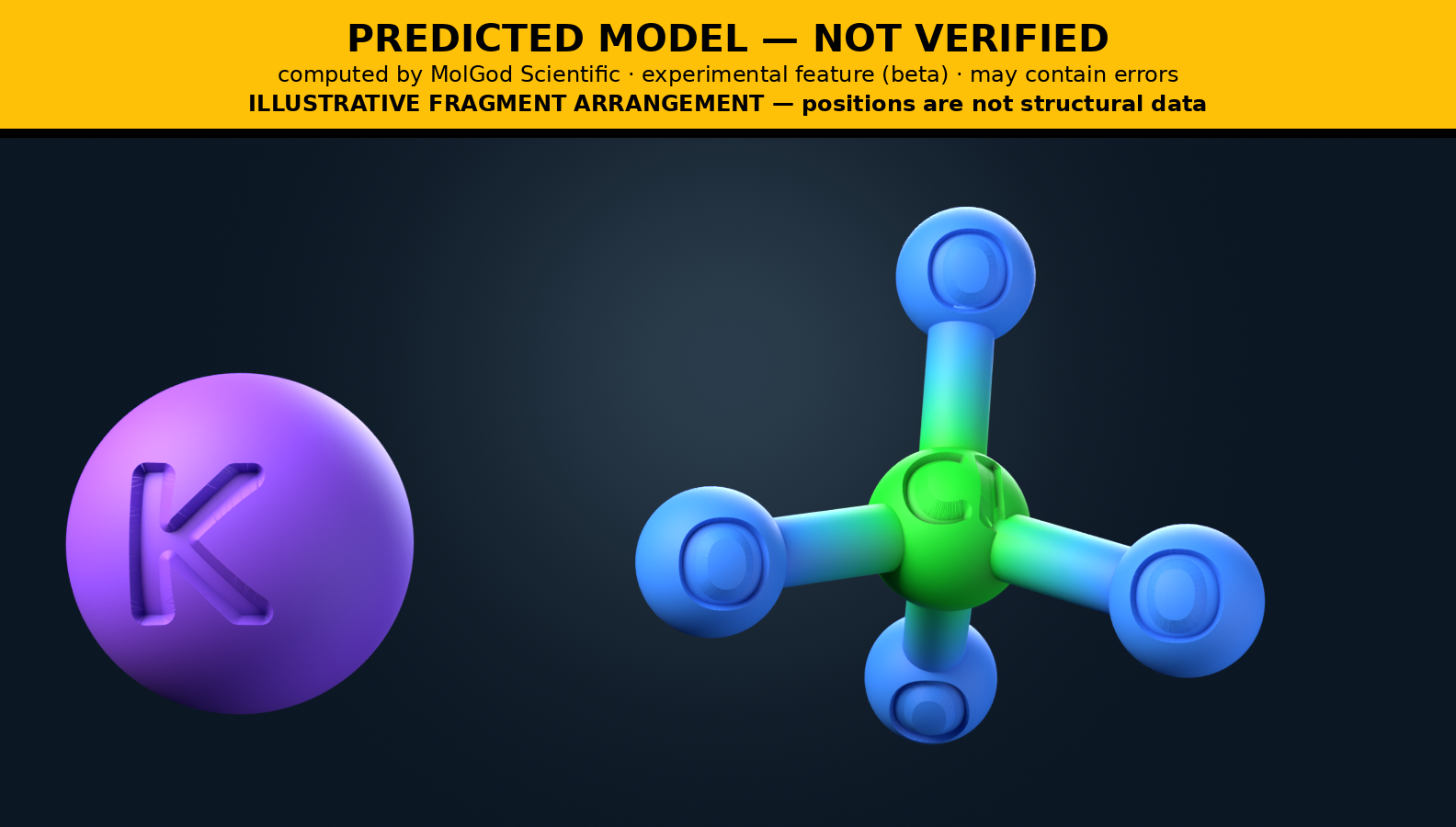

Potassium Perchlorate (CAS 7778-74-7), KClO₄ - 3D ball-and-stick molecular model, engraved element symbols (K Cl O), MolGod STL previewDownload image

MG-STL-7778-74-7-ENGRAVED · 121,432 △ · 6 MB · SHA-256 2ea67f5f649f001d

Download 3D model · ENGRAVED · K Cl O

Potassium Perchlorate (CAS 7778-74-7), KClO₄ - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG-STL-7778-74-7-NORMAL · 2,304 △ · 113 KB · SHA-256 5c85244780a93d38

Download 3D model

Model
Potassium Perchlorate · 7778-74-7
InChIKey
YLMGFJXSLBMXHK-UHFFFAOYSA-M
License
CC BY-SA 4.0 International (source rights undetermined — not yet granted)
Attribution
MolGod Scientific — Potassium Perchlorate (CAS 7778-74-7)
License & provenance record
Potassium Perchlorate (CAS 7778-74-7) →
MolGod molecule record
Potassium Perchlorate →
Source data
PubChem CID 516900 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 59d3f622957e · generated 2026-10-08
SHA-256 (STL)
5c85244780a93d3878082655eab6fdee15c53ca3d4fe83da377bab946037f6c2
MD5 (STL)
1017d527cbcf36e488b5e6491c6b3b66
Model identifier
MG-STL-7778-74-7
Transformation
MolGod Scientific ball-and-stick mesh
Changes
PREDICTED geometry computed by MolGod Scientific (RDKit), NOT verified; rendered as a triangulated mesh.
Wikimedia Commons
not published yet

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
