Sodium Cyanide

CAS 143-33-9  ·  CNNa  ·  MW 49.007 g/mol

Loading molecule...
3D model Sodium Cyanide, CAS 143-33-9, molecular formula CNNa, molar mass 49.007 g/mol

Model views

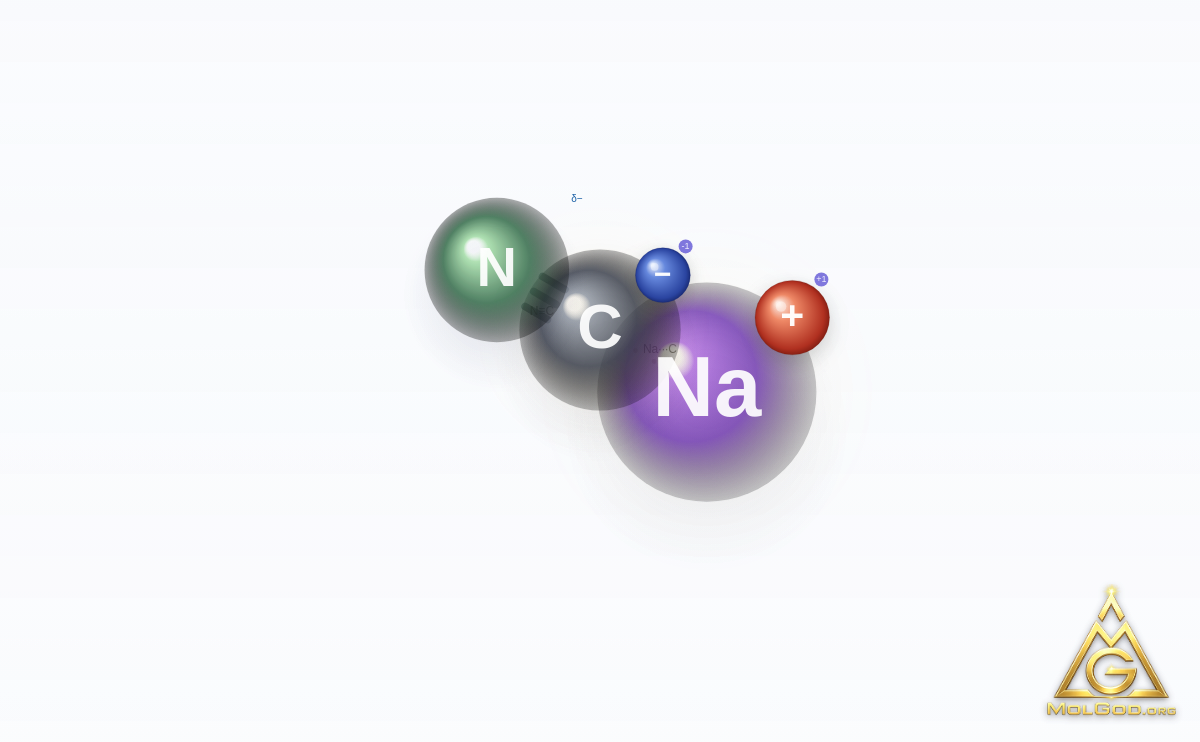

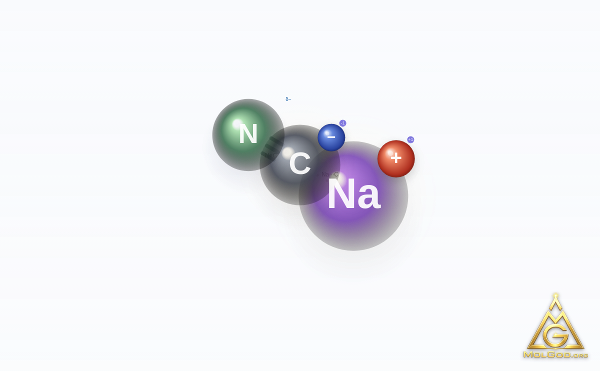

  • Sodium Cyanide (CAS 143-33-9) – ball-and-stick 3D model, MolGod Viewer
    ball-and-stick 3D model

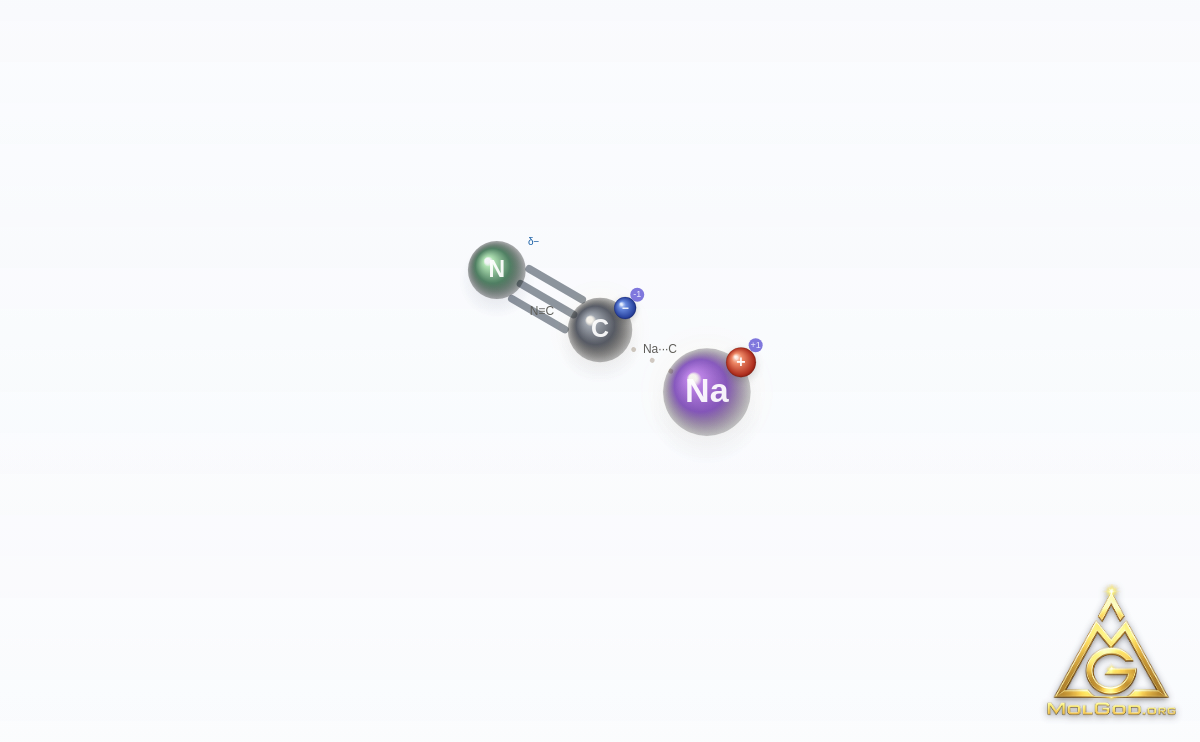

  • Sodium Cyanide (CAS 143-33-9) – skeletal 3D model, MolGod Viewer
    skeletal 3D model

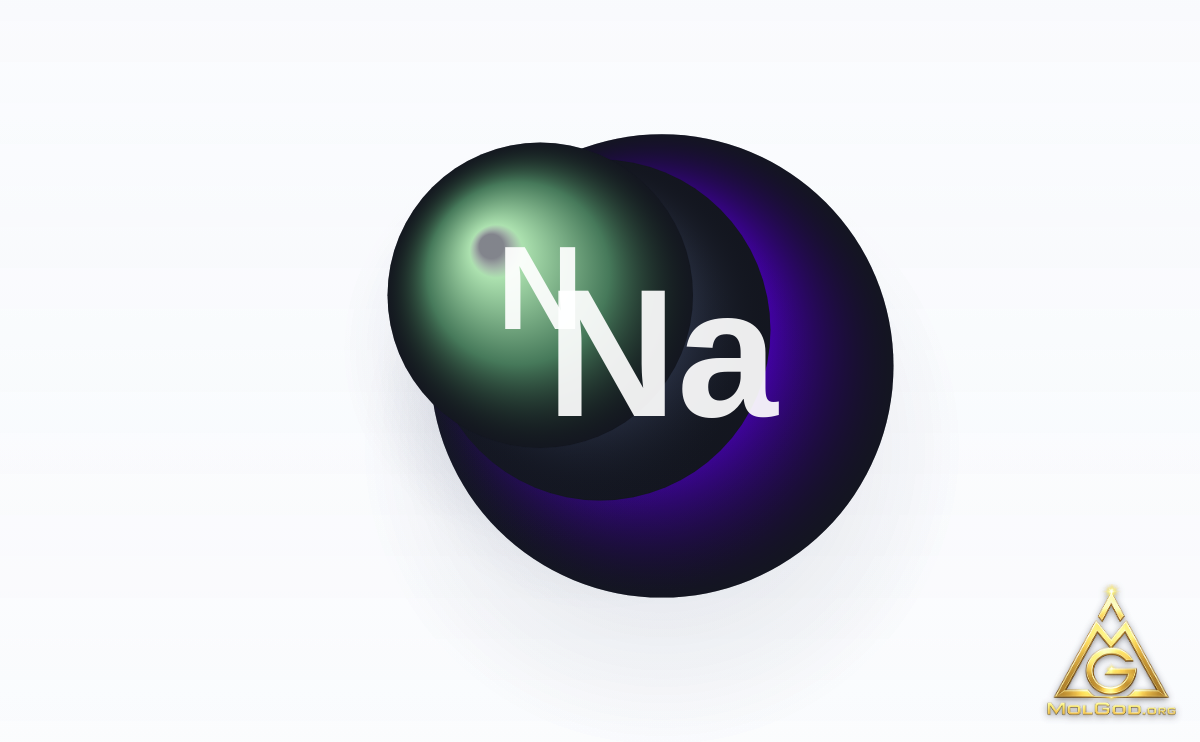

  • Sodium Cyanide (CAS 143-33-9) – space-filling 3D model, MolGod Viewer
    space-filling 3D model
  • Sodium Cyanide (CAS 143-33-9) – 2D structure, MolGod Viewer
    2D structure

© 2026 MolGod.org. All rights reserved. · Image rights

About Sodium Cyanide

Sodium Cyanide is a chemical compound registered under number CAS 143-33-9, with the molecular formula CNNa, and a molar mass of 49.007 g/mol.

The molecule contains 3 atoms connected by 2 chemical bonds. The full systematic IUPAC name of this compound is sodium cyanide. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, polar surface area PSA = 23.8 Ų, 0 donors and 2 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The widget above may be used for educational, research and commercial purposes.

Physicochemical properties
Molecular formulaCNNa
Molar mass49.007 g/mol
IUPACsodium cyanide
SMILES[C-]#N.[Na+]
InChIKeyMNWBNISUBARLIT-UHFFFAOYSA-N
logP (XLogP3)—
PSA23.8 Ų
HBD / HBA0 / 2
PubChem CIDCID 8929 ↗
GHS safety

Signal word: Danger

GHS06
GHS06
GHS07
GHS07
GHS09
GHS09

H300 — Fatal if swallowed

H310 — Fatal in contact with skin

H330 — Fatal if inhaled

H400 — Very toxic to aquatic life

H410 — Very toxic to aquatic life with long lasting effects

H316 — Causes mild skin irritation

H319 — Causes serious eye irritation

Scientific literature

Related literature

20 articles · 9 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (number of articles: 20)

1986: number of articles 119861993: number of articles 22002: number of articles 12003: number of articles 12004: number of articles 12007: number of articles 12008: number of articles 120082012: number of articles 42015: number of articles 22016: number of articles 12018: number of articles 12019: number of articles 12021: number of articles 32021

Bar height = number of articles in a given year. Hover over a bar to see details.

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
SODIUM CYANIDE · 143-33-9 · Cymag · Cyanogran · Cyanide of sodium · NaCN · Sodium cyanide (Na(CN)) · Cyanasalt H · Cyanasalt S · Cyanobrik · Kyanid sodny · Cianuro di sodio · Cyanure de sodium · Hydrocyanic acid, sodium salt · M-44 cyanide capsules
Data sources
Related molecules
📜 License & provenancePREDICTED MODEL · NOT VERIFIEDMolGod_License_1
PREDICTED MODEL — NOT VERIFIED
computed by MolGod Scientific · experimental feature (beta) · may contain errors
ILLUSTRATIVE FRAGMENT ARRANGEMENT — relative positions are not structural data

No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94 force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.

This substance consists of 2 separate components (for example ions). Each component was computed separately; they are arranged radially around a layout anchor for visualisation only (at least 3.0 Å apart). Their relative positions are not a crystal structure, coordination geometry, ionic contacts or any experimentally determined arrangement.

Methods and references
  1. RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
  2. Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
  3. Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
  4. Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
  5. Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
  6. Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
  7. Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/8929
  8. Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)

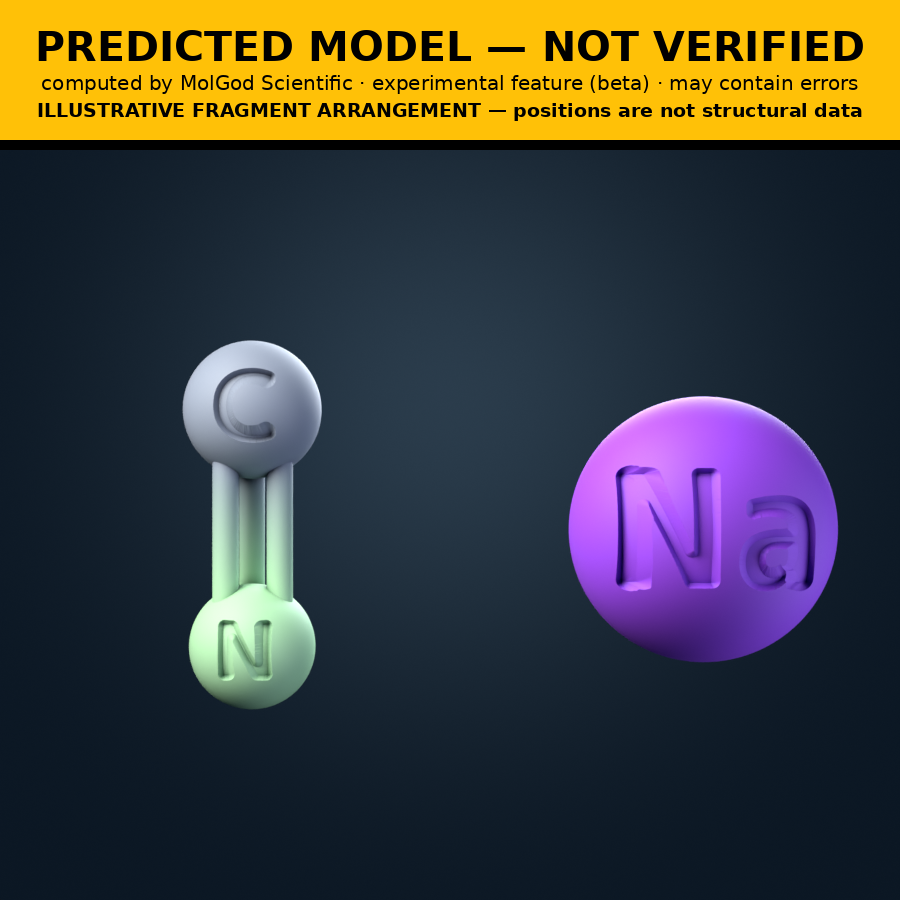

Sodium Cyanide (CAS 143-33-9), CNNa - 3D ball-and-stick molecular model, engraved element symbols (C N Na), MolGod STL previewDownload image

MG-STL-143-33-9-ENGRAVED · 66,210 △ · 3 MB · SHA-256 c95060b7dea75292

Download 3D model · ENGRAVED · C N Na

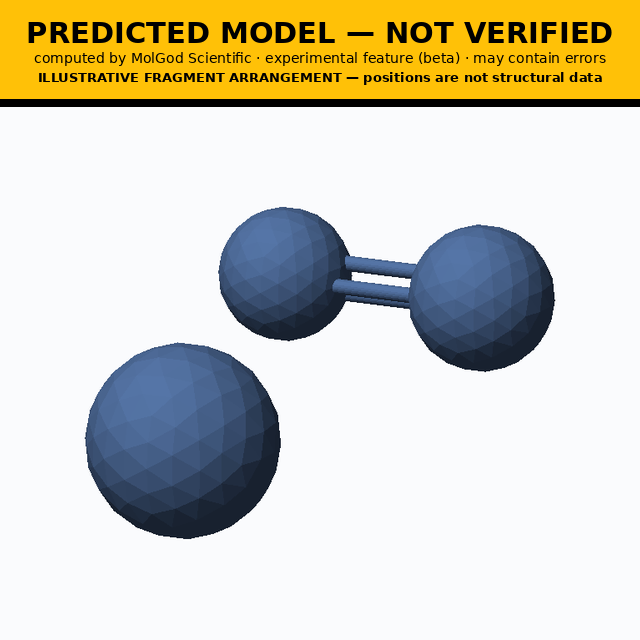

Sodium Cyanide (CAS 143-33-9), CNNa - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG-STL-143-33-9-NORMAL · 1,248 △ · 61 KB · SHA-256 3a9d4cb62a00afdb

Download 3D model

Model
Sodium Cyanide · 143-33-9
InChIKey
MNWBNISUBARLIT-UHFFFAOYSA-N
License
CC BY-SA 4.0 International (source rights undetermined — not yet granted)
Attribution
MolGod Scientific — Sodium Cyanide (CAS 143-33-9)
License & provenance record
Sodium Cyanide (CAS 143-33-9) →
MolGod molecule record
Sodium Cyanide →
Source data
PubChem CID 8929 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 48804cd20b0d · generated 2026-10-14
SHA-256 (STL)
3a9d4cb62a00afdb2f5119edc2197a310f1d78e34a6f6a0167986f2c09b92a71
MD5 (STL)
2af84edced73dbecf8993c0d647a609c
Model identifier
MG-STL-143-33-9
Transformation
MolGod Scientific ball-and-stick mesh
Changes
PREDICTED geometry computed by MolGod Scientific (RDKit), NOT verified; rendered as a triangulated mesh.
