Cyclonite (CAS 121-82-4)

Cyclonite

CAS 121-82-4  ·  C3H6N6O6  ·  MW 222.12 g/mol

Cyclonite (CAS 121-82-4) — full MolGod record →
Safety data sheet with all sections: GHS classification, transport, regulatory status, spectra, 3D model and literature.
Loading molecule...
3D model Cyclonite, CAS 121-82-4, molecular formula C3H6N6O6, molar mass 222.12 g/mol

Model views

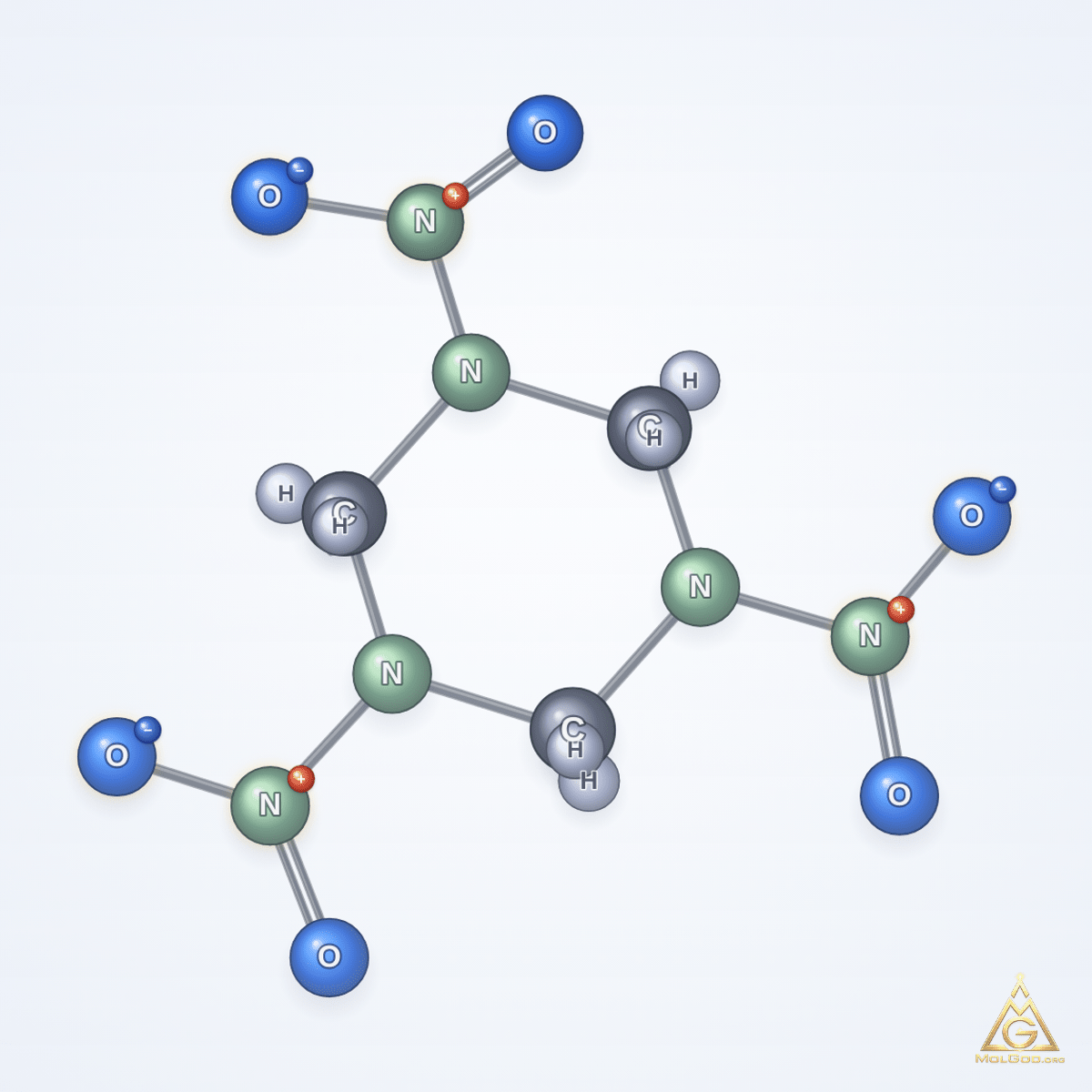

  • Cyclonite (CAS 121-82-4) – ball-and-stick 3D model, MolGod Viewer
    ball-and-stick 3D model

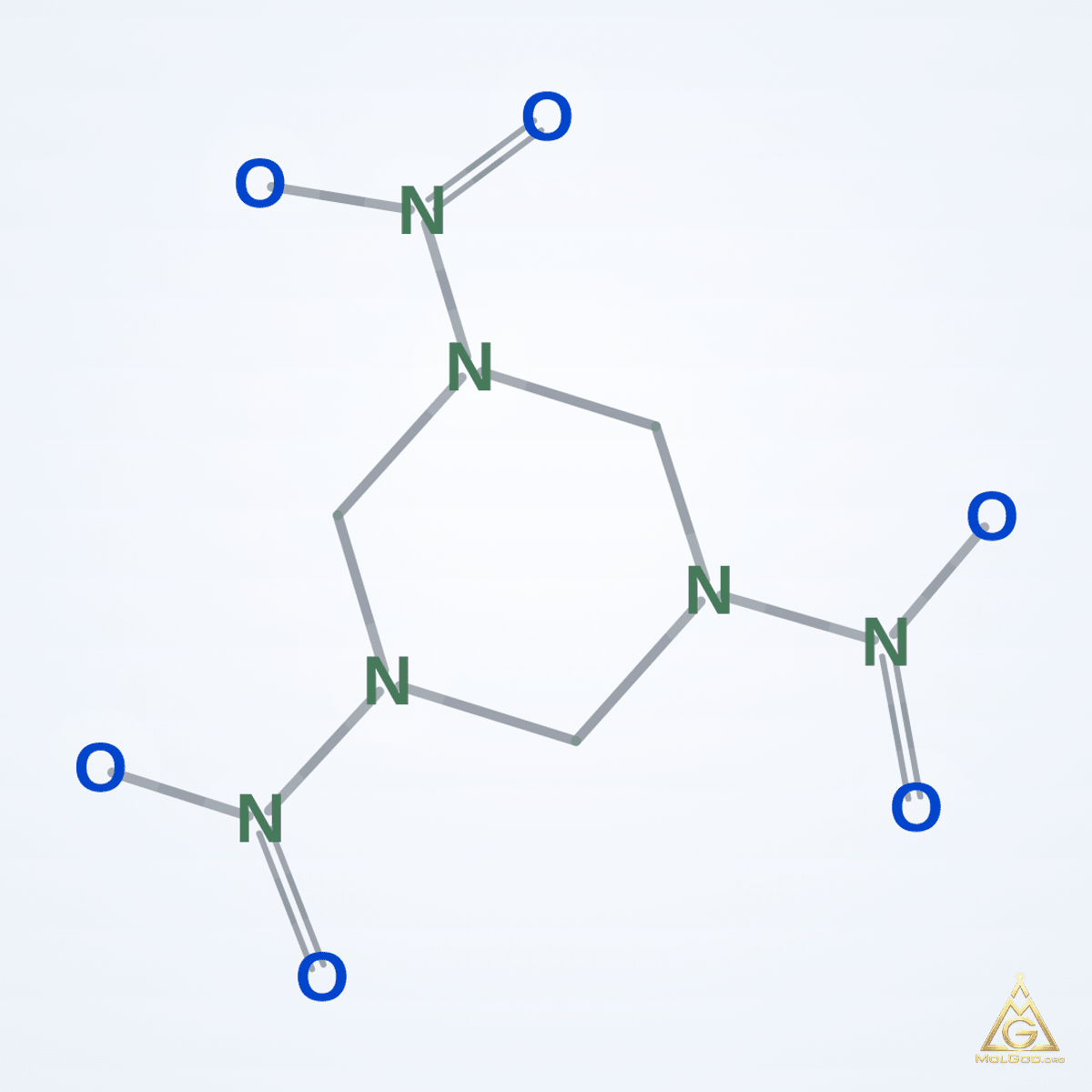

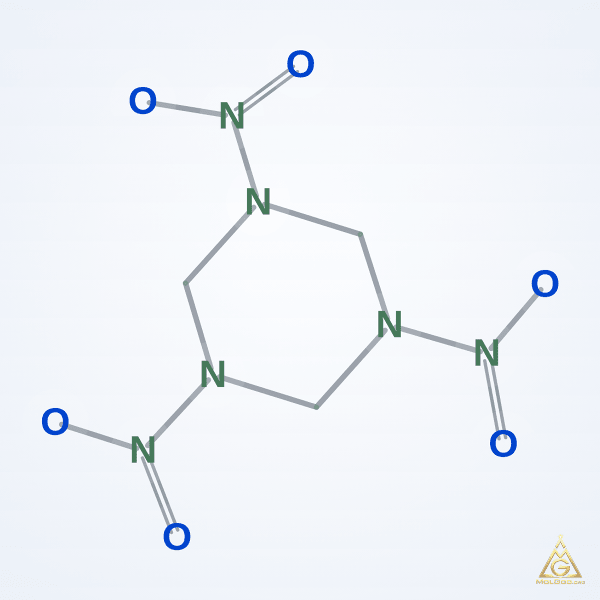

  • Cyclonite (CAS 121-82-4) – skeletal 3D model, MolGod Viewer
    skeletal 3D model

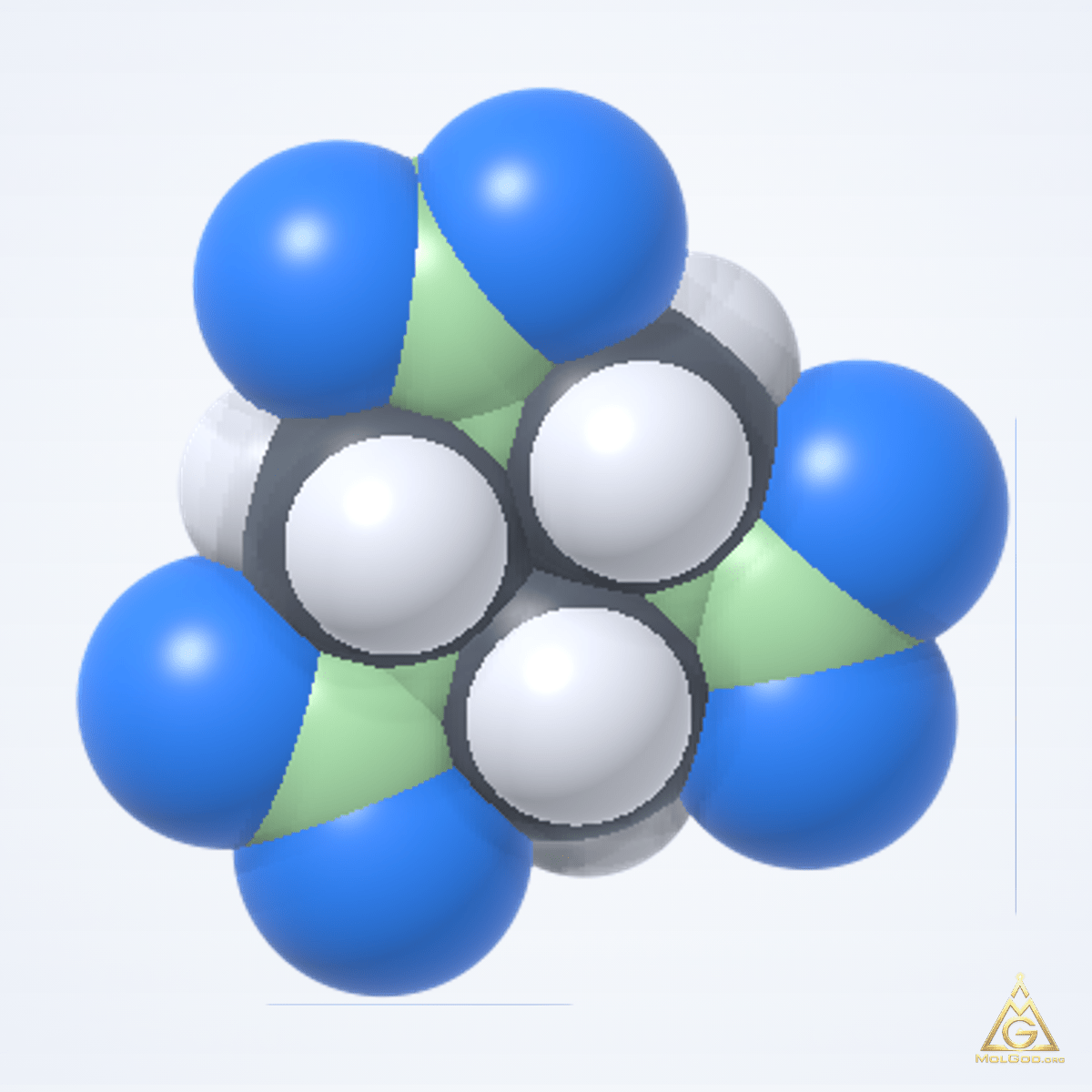

  • Cyclonite (CAS 121-82-4) – space-filling 3D model, MolGod Viewer
    space-filling 3D model
  • Cyclonite (CAS 121-82-4) – 2D structure, MolGod Viewer
    2D structure

© 2026 MolGod.org. All rights reserved. · Image rights

About Cyclonite (CAS 121-82-4)

Cyclonite (CAS 121-82-4) is a chemical compound registered under number CAS 121-82-4, with the molecular formula C3H6N6O6, and a molar mass of 222.12 g/mol.

The molecule contains 21 atoms connected by 21 chemical bonds. The full systematic IUPAC name of this compound is 1,3,5-trinitro-1,3,5-triazinane. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, the partition coefficient logP = 1.6 (positive value, a lipophilic compound), polar surface area PSA = 147 Ų, 0 donors and 9 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The interactive 3D model and the viewer images are protected by copyright (© MolGod.org) — terms of use: molgod.org/copyright/.

Physicochemical properties
Molecular formulaC3H6N6O6
Molar mass222.12 g/mol
IUPAC1,3,5-trinitro-1,3,5-triazinane
SMILESC1N(CN(CN1[N+](=O)[O-])[N+](=O)[O-])[N+](=O)[O-]
InChIKeyXTFIVUDBNACUBN-UHFFFAOYSA-N
logP (XLogP3)1.6
PSA147 Ų
HBD / HBA0 / 9
PubChem CIDCID 8490 ↗
GHS safety

Signal word: Danger

GHS01
GHS01
GHS06
GHS06
GHS07
GHS07
GHS08
GHS08
GHS09
GHS09

H201 — Explosive; mass explosion hazard

H301 — Toxic if swallowed

H351 — Suspected of causing cancer

H361 — Suspected of damaging fertility or the unborn child

H370 — Causes damage to organs

H372 — Causes damage to organs through prolonged or repeated exposure

Scientific literature

Related literature

18 articles · 4 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (number of articles: 18)

1949: number of articles 219491953: number of articles 11962: number of articles 11983: number of articles 32003: number of articles 12004: number of articles 12005: number of articles 220052007: number of articles 12012: number of articles 12017: number of articles 12020: number of articles 12021: number of articles 12023: number of articles 22023

Bar height = number of articles in a given year. Hover over a bar to see details.

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
CYCLONITE · Hexogen · Cyclotrimethylenetrinitramine · 121-82-4 · Hexahydro-1,3,5-trinitro-1,3,5-triazine · Geksogen · Trimethylenetrinitramine · Hexogen 5W · Heksogen · Hexogeen · Hexogen (Explosive) · 1,3,5-Trinitro-1,3,5-triazacyclohexane · Trimethyleentrinitramine · Cyclotrimethylenenitramine · Cyklonit
Data sources
Buy in the shop
Related molecules
📜 License & provenanceMolGod_License_1

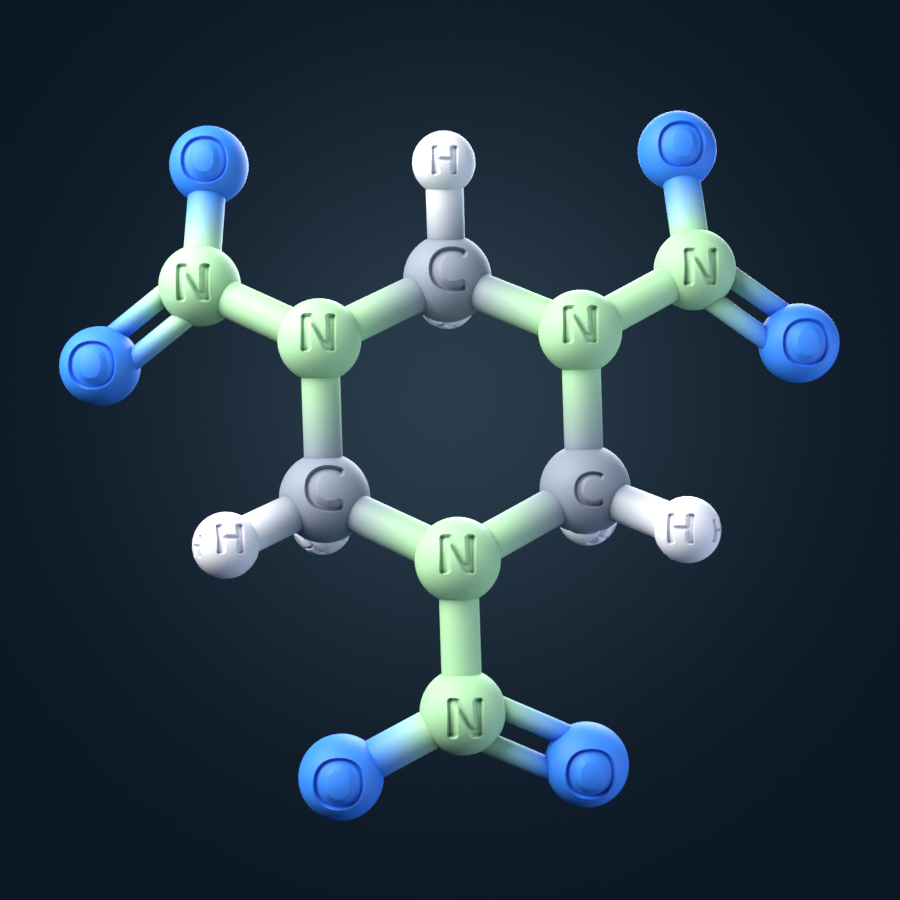

Cyclonite (CAS 121-82-4), C3H6N6O6 - 3D ball-and-stick molecular model, engraved element symbols (C H N O), MolGod STL previewDownload image

MG-STL-121-82-4-ENGRAVED · 310,462 △ · 15 MB · SHA-256 f1c6f95abd203e17

Download 3D model · ENGRAVED · C H N O

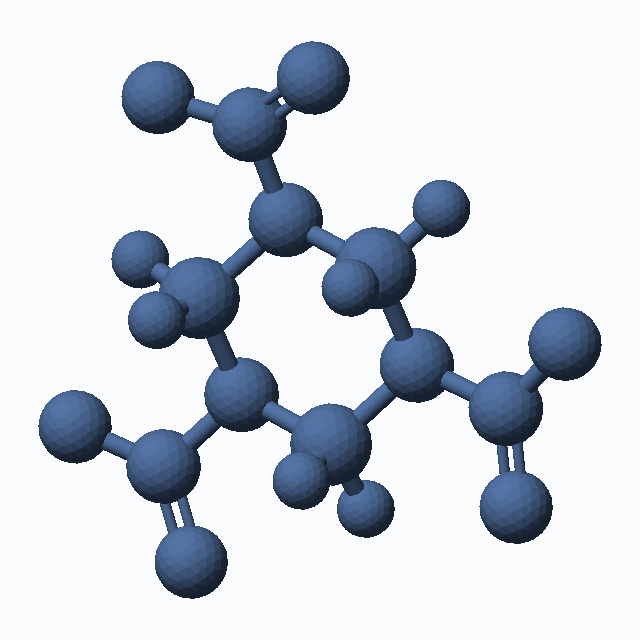

Cyclonite (CAS 121-82-4), C3H6N6O6 - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG-STL-121-82-4-NORMAL · 9,024 △ · 441 KB · SHA-256 b5021e28b30de6e0

Download 3D model

Model
Cyclonite · 121-82-4
InChIKey
XTFIVUDBNACUBN-UHFFFAOYSA-N
License
CC BY-SA 4.0 International
Attribution
MolGod Scientific — Cyclonite (CAS 121-82-4)
License & provenance record
Cyclonite (CAS 121-82-4) →
MolGod molecule record
Cyclonite →
Source data
PubChem CID 8490 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 2ea9a8c82836 · generated 2026-10-28
SHA-256 (STL)
b5021e28b30de6e0c7240e71031f4d6fe0e224ac1a1768309b66fc75cdca8a36
MD5 (STL)
f2a0091747ee935e83c55b37528915a2
Model identifier
MG-STL-121-82-4
Transformation
MolGod Scientific ball-and-stick mesh
Changes
Converted into a triangulated molecular mesh; atomic coordinates and connectivity unchanged.
Wikimedia Commons
not published yet
Free printable molecule model
Download the model, print it and use it in education. When you publish a photo, a material or an adaptation, the CC BY-SA 4.0 International licence requires you to credit “MolGod Scientific” as the author of the model, link to the original and to the licence text, indicate any changes you made and share adaptations under the same licence. A ready-to-use attribution text is in this section. No sign-up, no fees and no obligation to leave a review.

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
