Diethylenetriaminepentaacetic acid

CAS 67-43-6  ·  C14H23N3O10  ·  MW 393.35 g/mol

Loading molecule...

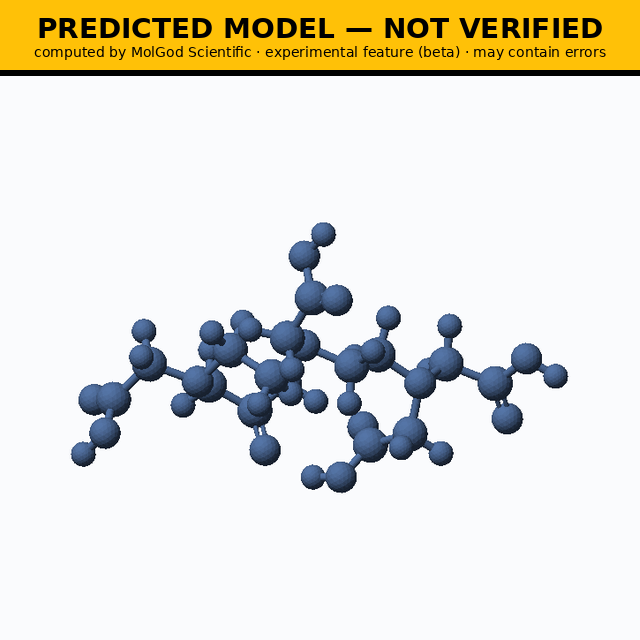

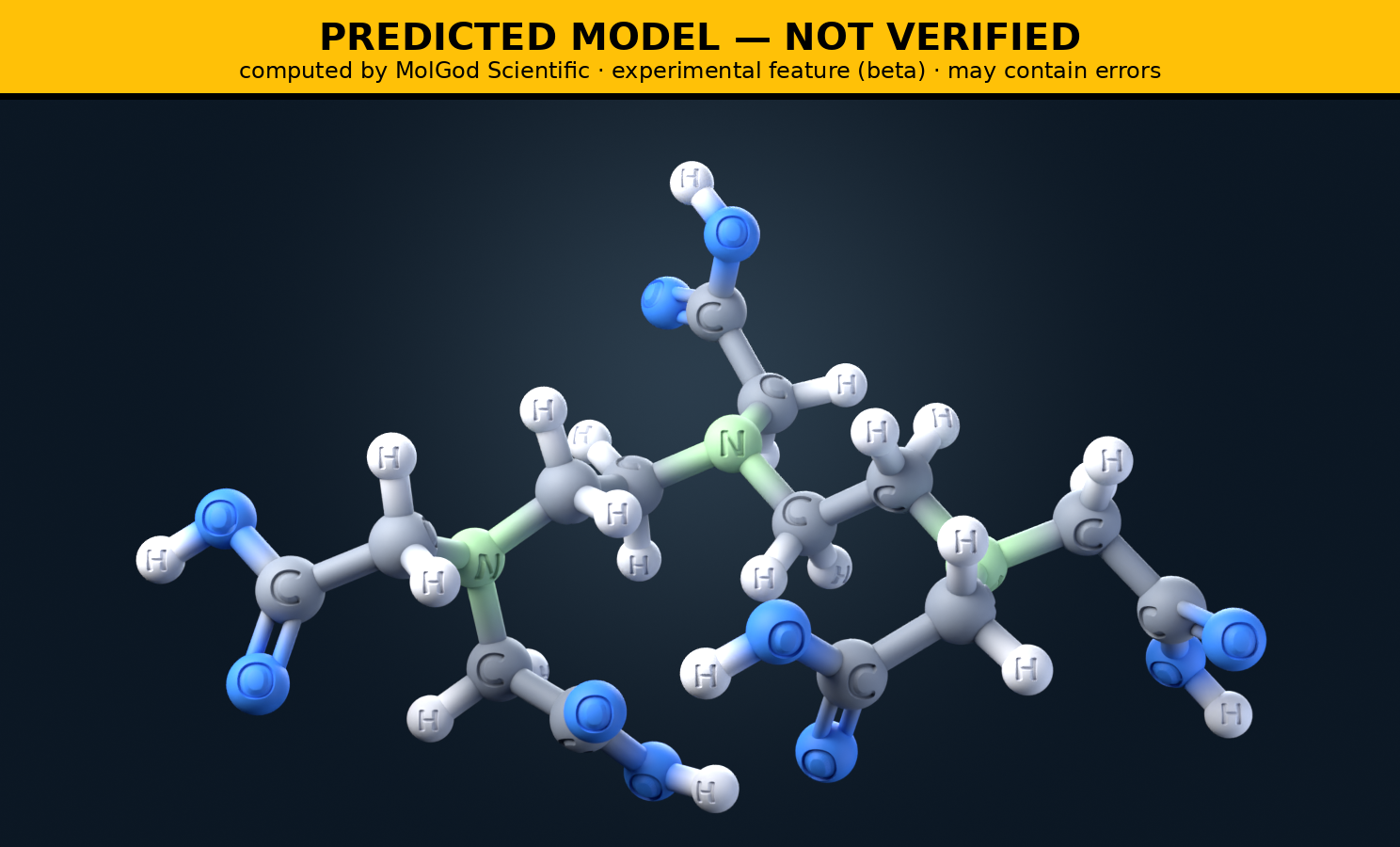

3D model Diethylenetriaminepentaacetic acid, CAS 67-43-6, molecular formula C14H23N3O10, molar mass 393.35 g/mol
About Diethylenetriaminepentaacetic acid

Diethylenetriaminepentaacetic acid is a chemical compound registered under number CAS 67-43-6, with the molecular formula C14H23N3O10, and a molar mass of 393.35 g/mol.

The molecule contains 50 atoms connected by 49 chemical bonds. The full systematic IUPAC name of this compound is 2-[bis[2-[bis(carboxymethyl)amino]ethyl]amino]acetic acid. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, the partition coefficient logP = -8.5 (negative value, a hydrophilic compound), polar surface area PSA = 196 Ų, 5 donors and 13 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The widget above may be used for educational, research and commercial purposes.

Physicochemical properties
Molecular formulaC14H23N3O10
Molar mass393.35 g/mol
IUPAC2-[bis[2-[bis(carboxymethyl)amino]ethyl]amino]acetic acid
SMILESC(CN(CC(=O)O)CC(=O)O)N(CCN(CC(=O)O)CC(=O)O)CC(=O)O
InChIKeyQPCDCPDFJACHGM-UHFFFAOYSA-N
logP (XLogP3)-8.5
PSA196 Ų
HBD / HBA5 / 13
PubChem CIDCID 3053 ↗
GHS safety

Signal word: Danger

GHS07
GHS07
GHS08
GHS08

? — H360D

H332 — Harmful if inhaled

H373 — May cause damage to organs through prolonged or repeated exposure

H319 — Causes serious eye irritation

Scientific literature

Brak articles naukowych dla CAS 67-43-6 w PubMed / OpenAlex / Semantic Scholar.

Synonyms
Pentetic acid · diethylenetriaminepentaacetic acid · 67-43-6 · DTPA · Detapac · Detarex · Titriplex V · Monaquest CAI · Perma kleer · Dabeersen 503 · CHEL 330 acid · Penthanil · Penthamil · Chel DTPA · Dissolvine D
Data sources
Related molecules
📜 License & provenancePREDICTED MODEL · NOT VERIFIEDMolGod_License_1
PREDICTED MODEL — NOT VERIFIED
computed by MolGod Scientific · experimental feature (beta) · may contain errors

No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94 force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.

Methods and references
  1. RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
  2. Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
  3. Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
  4. Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
  5. Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
  6. Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
  7. Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/3053
  8. Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)
