Sodium Oleate

CAS 143-19-1  ·  C₁₈H₃₃NaO₂  ·  MW 304.4 g/mol

Loading molecule...
3D model Sodium Oleate, CAS 143-19-1, molecular formula C₁₈H₃₃NaO₂, molar mass 304.4 g/mol

Model views

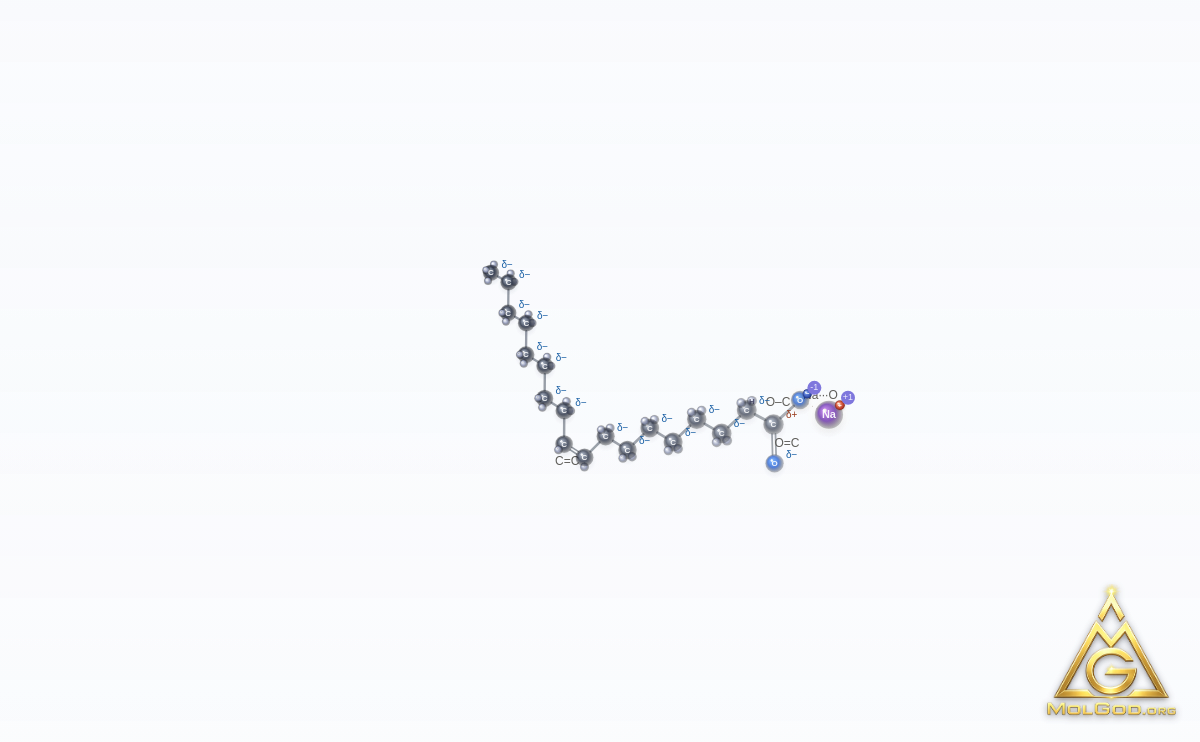

  • Sodium Oleate (CAS 143-19-1) – ball-and-stick 3D model, MolGod Viewer
    ball-and-stick 3D model

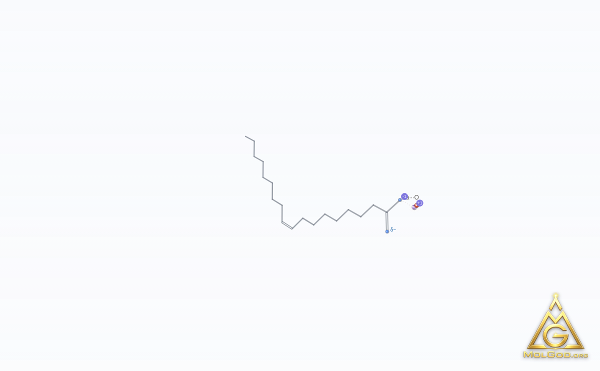

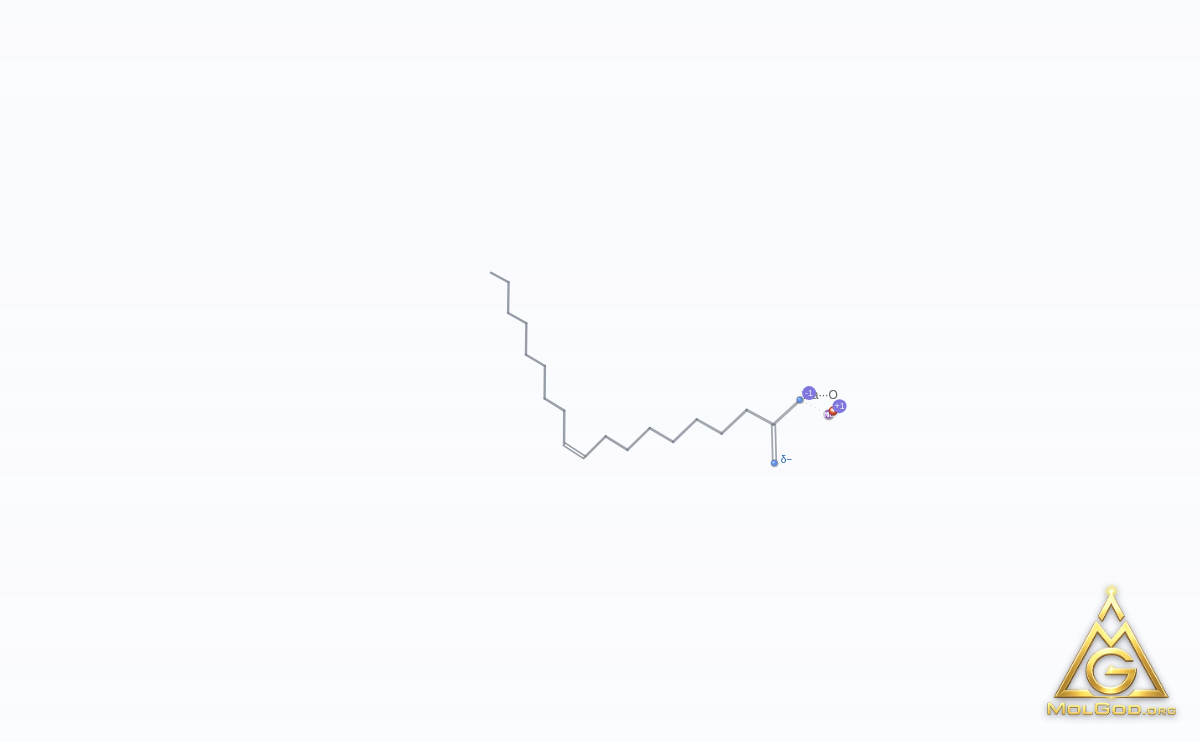

  • Sodium Oleate (CAS 143-19-1) – skeletal 3D model, MolGod Viewer
    skeletal 3D model

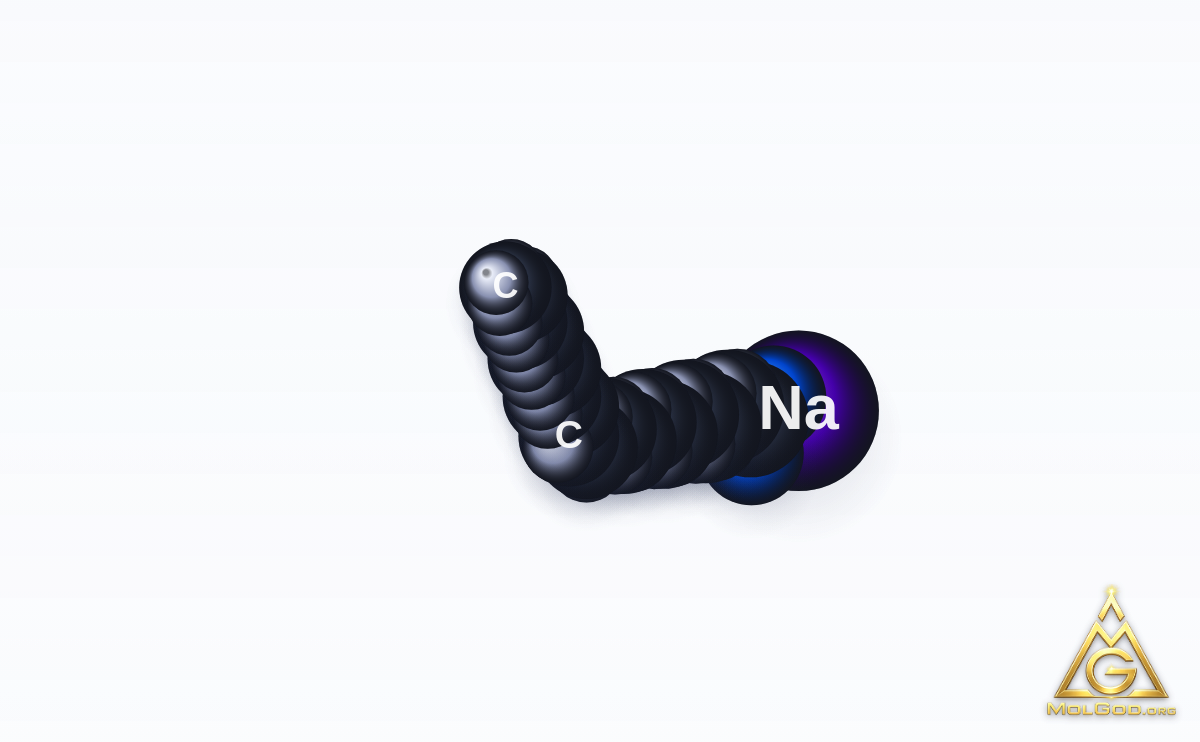

  • Sodium Oleate (CAS 143-19-1) – space-filling 3D model, MolGod Viewer
    space-filling 3D model

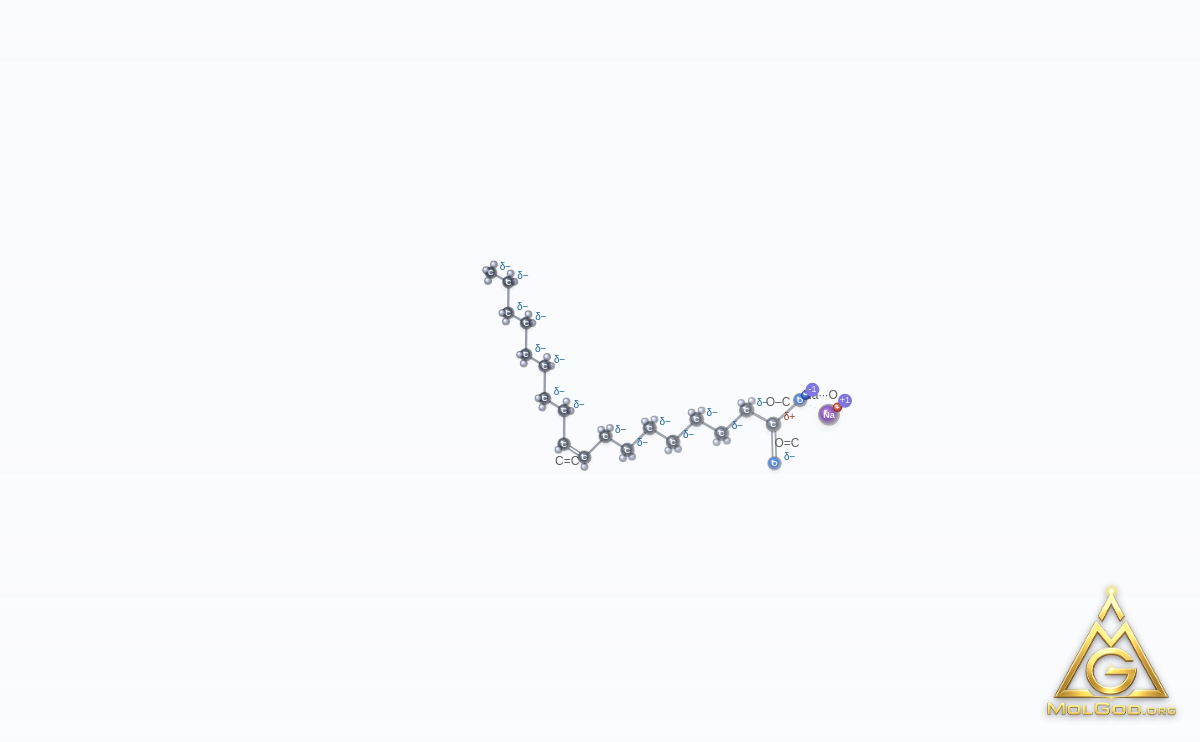

  • Sodium Oleate (CAS 143-19-1) – 2D structure, MolGod Viewer
    2D structure

© 2026 MolGod.org. All rights reserved. · Image rights

About Sodium Oleate

Sodium Oleate is a chemical compound registered under number CAS 143-19-1, with the molecular formula C₁₈H₃₃NaO₂, and a molar mass of 304.4 g/mol.

The molecule contains 54 atoms connected by 53 chemical bonds. The full systematic IUPAC name of this compound is sodium (Z)-octadec-9-enoate. The interactive 3D model above lets you view the spatial arrangement of the atoms — you can rotate it with the mouse, zoom with the scroll wheel, and switch between skeletal / Ball & Stick / Space Fill visualization modes.

In terms of physicochemical properties, polar surface area PSA = 40.1 Ų, 0 donors and 2 hydrogen bond acceptors. These parameters are key when assessing bioavailability and interaction with biomolecules.

Chemical data for this compound comes from PubChem (NIH NLM NCBI), one of the world's largest chemical databases. All information is updated automatically and enriched with GHS hazard statement translations compliant with the CLP Regulation (EC 1272/2008). The widget above may be used for educational, research and commercial purposes.

Physicochemical properties
Molecular formulaC₁₈H₃₃NaO₂
Molar mass304.4 g/mol
IUPACsodium (Z)-octadec-9-enoate
SMILESCCCCCCCC/C=C\CCCCCCCC(=O)[O-].[Na+]
InChIKeyBCKXLBQYZLBQEK-KVVVOXFISA-M
logP (XLogP3)—
PSA40.1 Ų
HBD / HBA0 / 2
PubChem CIDCID 23665730 ↗
Scientific literature

Related literature

8 articles · 2 open access · Sources: PubMed, OpenAlex, Semantic Scholar

Filters:Export:📄 BibTeX📑 RIS📋 EndNote🔧 CSL-JSON

📈 Publication timeline (number of articles: 8)

2018: number of articles 220182020: number of articles 12021: number of articles 220212022: number of articles 22022

Bar height = number of articles in a given year. Hover over a bar to see details.

Data from PubMed (NIH NLM), OpenAlex (CC0), Semantic Scholar (AI2). AI Summary generated by Semantic Scholar TLDR. Articles marked with require paid access.

Synonyms
SODIUM OLEATE · 143-19-1 · Oleic acid sodium salt · Osteum · Eunatrol · Olate flakes · Sodium 9-octadecenoate, (Z)- · 9-Octadecenoic acid (Z)-, sodium salt · Sodium 9-octadecenoate · CCRIS 1964 · HSDB 758 · oleate sodium · EINECS 205-591-0 · UNII-399SL044HN · 9-Octadecenoic acid (9Z)-, sodium salt
Data sources
Related molecules
📜 License & provenancePREDICTED MODEL · NOT VERIFIEDMolGod_License_1
PREDICTED MODEL — NOT VERIFIED
computed by MolGod Scientific · experimental feature (beta) · may contain errors
ILLUSTRATIVE FRAGMENT ARRANGEMENT — relative positions are not structural data

No source 3-D conformer was available to MolGod for this substance. MolGod Scientific computed this geometry from the structural formula with RDKit 2026.03.6 (ETKDGv3 conformer generation, MMFF94 force-field optimisation; lowest-energy converged conformer of a fixed-seed set). It is not a measured structure, it does not come from PubChem, and it has not been compared with experimental data. It shows one possible conformation.

This substance consists of 2 separate components (for example ions). Each component was computed separately; they are arranged radially around a layout anchor for visualisation only (at least 3.0 Å apart). Their relative positions are not a crystal structure, coordination geometry, ionic contacts or any experimentally determined arrangement.

Methods and references
  1. RDKit: Open-source cheminformatics, version 2026.03.6. Zenodo. doi:10.5281/zenodo.22140358 (all versions: doi:10.5281/zenodo.591637)
  2. Riniker S, Landrum GA. Better Informed Distance Geometry: Using What We Know To Improve Conformation Generation. J. Chem. Inf. Model. 2015, 55, 2562-2574. doi:10.1021/acs.jcim.5b00654
  3. Wang S, Witek J, Landrum GA, Riniker S. Improving Conformer Generation for Small Rings and Macrocycles Based on Distance Geometry and Experimental Torsional-Angle Preferences. J. Chem. Inf. Model. 2020, 60, 2044-2058. doi:10.1021/acs.jcim.0c00025
  4. Halgren TA. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490-519. doi:10.1002/(SICI)1096-987X(199604)17:5/6<490::AID-JCC1>3.0.CO;2-P
  5. Tosco P, Stiefl N, Landrum G. Bringing the MMFF force field to the RDKit: implementation and validation. J. Cheminform. 2014, 6, 37. doi:10.1186/s13321-014-0037-3
  6. Heller SR, McNaught A, Pletnev I, Stein S, Tchekhovskoi D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. doi:10.1186/s13321-015-0068-4
  7. Kim S, Chen J, Cheng T, et al. PubChem 2025 update. Nucleic Acids Res. 2025, 53, D1516-D1525. doi:10.1093/nar/gkae1059 Compound record: https://pubchem.ncbi.nlm.nih.gov/compound/23665730
  8. Bolton EE, Kim S, Bryant SH. PubChem3D: Conformer generation. J. Cheminform. 2011, 3, 4. doi:10.1186/1758-2946-3-4 (cited for contrast: no source 3-D conformer was available to MolGod for this record)

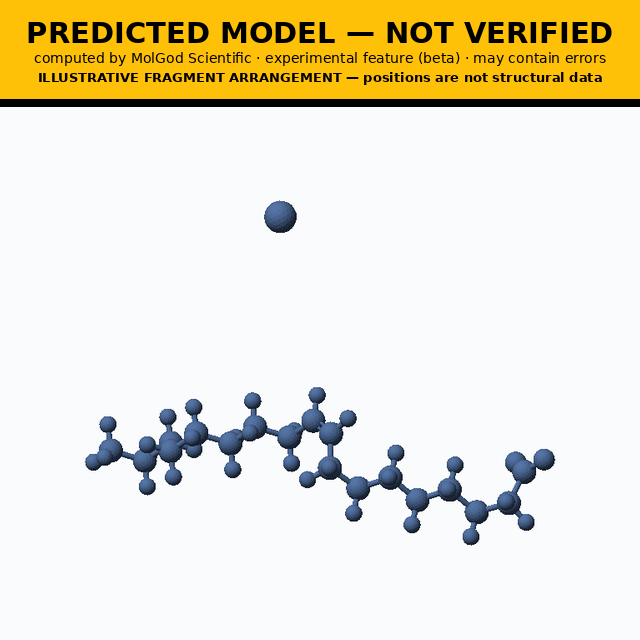

Sodium Oleate (CAS 143-19-1), C₁₈H₃₃NaO₂ - 3D ball-and-stick molecular model, engraved element symbols (C H Na O), MolGod STL previewDownload image

MG-STL-143-19-1-ENGRAVED · 624,410 △ · 30 MB · SHA-256 da35490200d98b96

Download 3D model · ENGRAVED · C H Na O

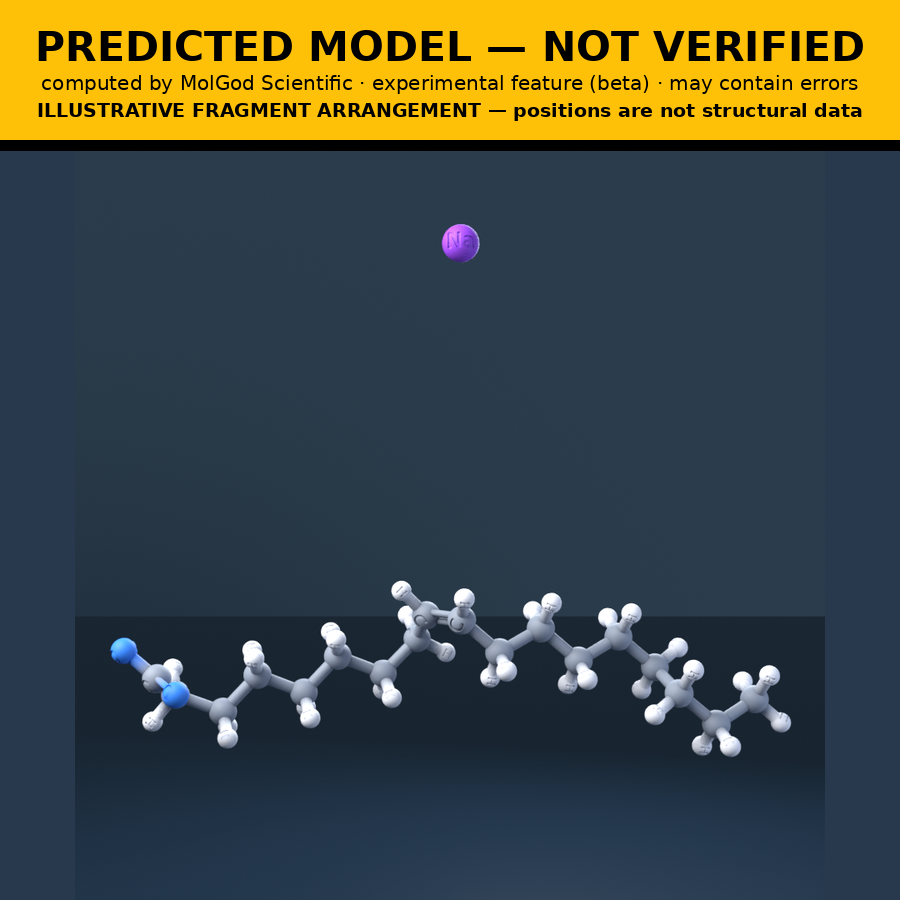

Sodium Oleate (CAS 143-19-1), C₁₈H₃₃NaO₂ - 3D ball-and-stick molecular model, MolGod STL previewDownload image

MG-STL-143-19-1-NORMAL · 22,464 △ · 1 MB · SHA-256 6fe566b4df93c872

Download 3D model

Model
Sodium Oleate · 143-19-1
InChIKey
BCKXLBQYZLBQEK-KVVVOXFISA-M
License
CC BY-SA 4.0 International (source rights undetermined — not yet granted)
Attribution
MolGod Scientific — Sodium Oleate (CAS 143-19-1)
License & provenance record
Sodium Oleate (CAS 143-19-1) →
MolGod molecule record
Sodium Oleate →
Source data
PubChem CID 23665730 ↗
Model information
STL generated by MolGod · MolGod STL Exporter build 48804cd20b0d · generated 2026-10-14
SHA-256 (STL)
6fe566b4df93c872bff55a578124cde8580cf77fd5b0b34c249a284411ca7f49
MD5 (STL)
6ba25764432bb96a0b53239dad4a5380
Model identifier
MG-STL-143-19-1
Transformation
MolGod Scientific ball-and-stick mesh
Changes
PREDICTED geometry computed by MolGod Scientific (RDKit), NOT verified; rendered as a triangulated mesh.
Wikimedia Commons
not published yet

This license applies to the MolGod-created STL mesh, not automatically to third-party source material.

—
